What is a low-voltage cable

The so-called low voltage wire is 0.6/1KV below the cable (including) for low voltage cable, the difference is the tolerance of different voltage, insulation and sheath structure is different; 0.3/0.5kv 0.45/0.75kv control cable; 0.6/1KV low-voltage power cable. Second, the low voltage cable more than 3.6/6 kv, 8.7/10 kv, 8.7/15 kv, 21/35 kv high voltage power cables, and ultrahigh pressure of 100 kv.

Application of low voltage cable

Low voltage power and control cables are used to supply power to low voltage installation systems. They are commonly used for a variety of indoor and outdoor applications in power plants, industrial and infrastructure projects, as well as to distribute electricity to a variety of residential and commercial loads.

Characteristics of low-voltage cables

Low voltage line structure is divided into single core or multi-core structure, single core or multi-core structure, copper or aluminum conductor, PVC or (XLPE) insulation, shielding or non-shielding, armored or non-armored design, and PVC outer sheath. Technical information Insulation materials for bare ground conductors and thermoplastic PVC single-core unsheathed cables are also included.

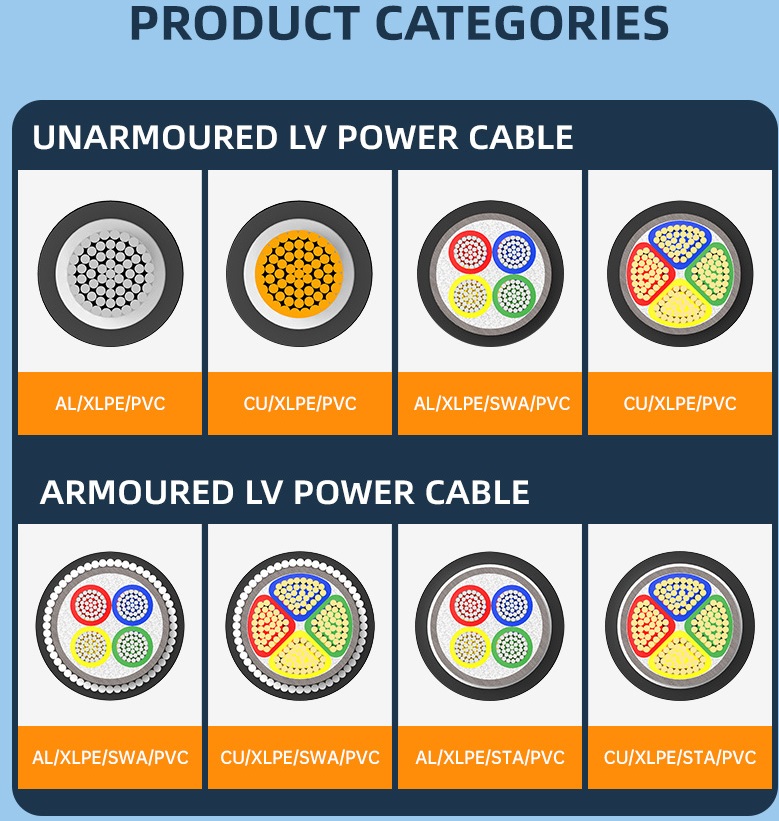

Types of low-voltage cables

Specifications and models of low-voltage wires are shown as follows; YJV-- cross-linked poly (B) insulated poly (B) sheathed (copper core) power cable. If it is (aluminum core) conductor, then add L in the middle, namely VLV, YJLV; Flame retardant cable, then add ZR in front, namely ZR-VV, ZR-YJV; Refractory cable, add N(or NH) in front, namely NH-VV, NH-YJV; Halogen free low smoke ### low voltage cable, common basic model: VV---- PolyB insulated polyB sheathed (copper core) power cable; YJV-- cross-linked poly (B) insulated poly (B) sheathed (copper core) power cable. If it is (aluminum core) conductor, then add L in the middle, namely VLV, YJLV; Flame retardant cable, then add ZR in front, namely ZR-VV, ZR-YJV; Refractory cable, add N(or NH) in front, namely NH-VV, NH-YJV; No halogen and low smoke, model for WD-YJY, cross-linked polyethylene insulated polyhydrocarbon sheath; The above functions are integrated, including: WDZAN-YJY-(halogen free low smoke) cross-linked polyethyl insulated polyhydrocarbon sheath, flame retardant fire-resistant power cable. Also: pre-branched cable, plus F(or YF); Irradiation cross-linked cable, plus FZ; Rubber sleeve cable,YQ,YZ,YC(YQW,YZW,YCW), respectively corresponding to light, medium, heavy. There are many kinds, such as fire cable (mineral insulation cable), etc., the general occasion is not used.

FAQ:

What is size is Low voltage cable?

The size is from 1.5 mm to 500mm, Can be directly buried, free air, pipes, underground pipes.

Do you have Low voltage cable in stocK?

Yes, we have Low voltage cable in stock. Just tell me your request, I will choose the right cable for you
