cable solar 4mm Introduction
cable solar 4mm Introduction
Solar cable 4 mm for photovoltaic system connecting cable, such as group between string and string to dc power distribution box, junction box) between the parallel cable, pv modules and components of dc side series cable, between groups between string and string of dc power distribution box, junction box) crosslinking between the cable and dc cable distribution box to inverter, It can also be used as an AC application cable between inverter and transmission network.

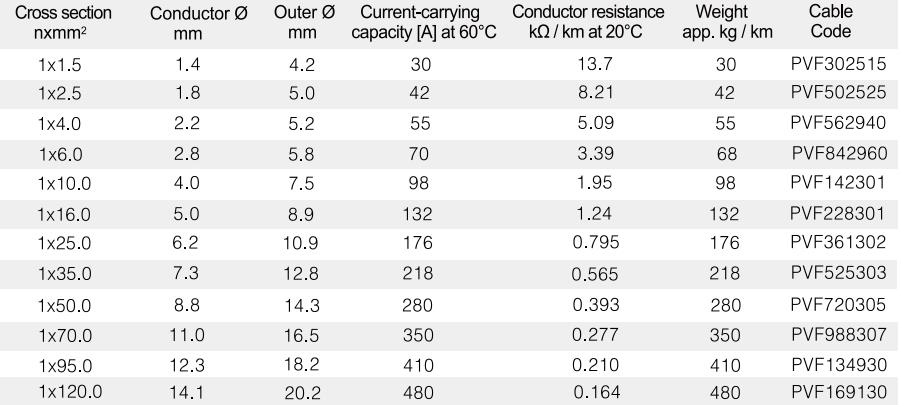

solar cable 4mm specification
Construction
Conductor:Tinned fine copper strands acc.to VDE
0295/IEC 60228, Class 5.
Insulation:XLPO, flame retardant, halogen free
electron-beam cross-linked.
Jacket:XLPO, flame retardant, halogen free, electron-beam cross-linked.
Insulation color :black
Jacket color :black or red
Electrical characteristics
Rated voltage :DC 1500 V AC Uo/U:1.0/1.0 kV
max.permitted voltage :Uo 1800 V DC
Insulation resistance :1000MΩ/KM
Test Voltage(AC):AC 6. 5kV, 50Hz, 5 min
Mechanical feature
Bending radius :4 x outer diameters
Temperature range :-40℃ to +90℃, Max.temp. at conductor +120℃
Short circuit temperature :250℃ for 5 s
Flame-resistant test :acc.to EN 60332-1-2
Anticipated service life:25years
Advantages
l Double insulated Electron-beam cross-linked compounds
l Meter marking - easy installation
l UV, ozone and hydrolysis resistant
l Halogen free, flame retardant
l Meter marking - easy installation
l Compatible to all connectors
l Flexible, easy to strip
FAQ
What is solar cable 4mm used for?
solar cable 4mm is uesed for solar, residential, commercial, and industrial lighting and power.
What is size is solar cable 4mm?
The size is from 16 AWG to 1000 MCM, 1.0sqmm to 240sqmm. Can be directly buried, free air, pipes, underground pipes.
Do you have solar cable 4mm in stocK?
Yes, we have solar cable 4mm in stock. Just tell me your request, I will choose the right cable for you.
