What do you know about energy storage cables?
What do you know about energy storage cables?

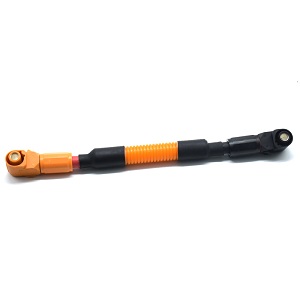

With the rapid development of the power storage industry, to standardize and standardize it, the application of energy storage components also needs to attract extensive attention in the industry. Among them, a large number of battery connection cables are used in the energy storage system as nerves and blood vessels of the energy storage system. Energy storage cables refer to the DC side connecting cables connected between battery clusters and between battery clusters and converters.
Features of energy storage cables
The energy storage cable is used in the DC system, the rated voltage is DC1500V and below, and the maximum temperature resistance level is 125℃. Due to the use environment of the energy storage cable, there are strict requirements on the service life of the cable, high and low-temperature resistance, chemical resistance, battery acid resistance, and combustion performance, so the cable needs to meet:
1 Excellent electrical performance;
2. Acid and alkali resistance, salt spray resistance, and UV resistance, with long-term outdoor use characteristics;
4 Good softness, the rebound angle of softness evaluation is not more than 40°;
5. Cable life evaluation: the temperature index when extrapolated to 20000h by the Arrhenius regression curve, is not lower than 125℃.
standard
For battery connection cables for energy storage systems, TÜV and CQC have jointly formulated standards for battery connection cables for energy storage systems, which regulate the use and selection of cables.
use
Cables between battery modules, between battery clusters, between battery clusters and combiner boxes, or between battery clusters and energy storage converters on the DC side of power storage systems

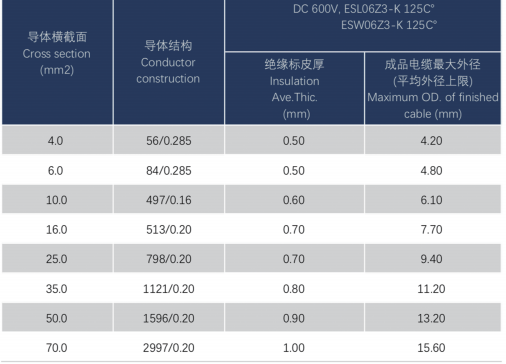

Product parameters
