H1z2z2-k solar PV cable
H1z2z2-k solar PV cable
Solar DC cables manufactured in accordance with the latest European standard EN 50618, uniformly named H1Z2Z2-K, are designated lines for photovoltaic (PV) systems, especially for installation between nominal DC conductors on the direct current (DC) side and The voltage between conductor and ground shall not exceed 1.5kV and shall not exceed 1800V. EN 50618 requires low smoke zero halogen cables and flexible tinned copper conductors with single core cross-linked insulation and jacket. Cables must be tested at 11kV AC 50Hz and operate over a temperature range of -40 o C to +90 o C. The H1Z2Z2-K replaces the previous TV-approved
specifications of the products

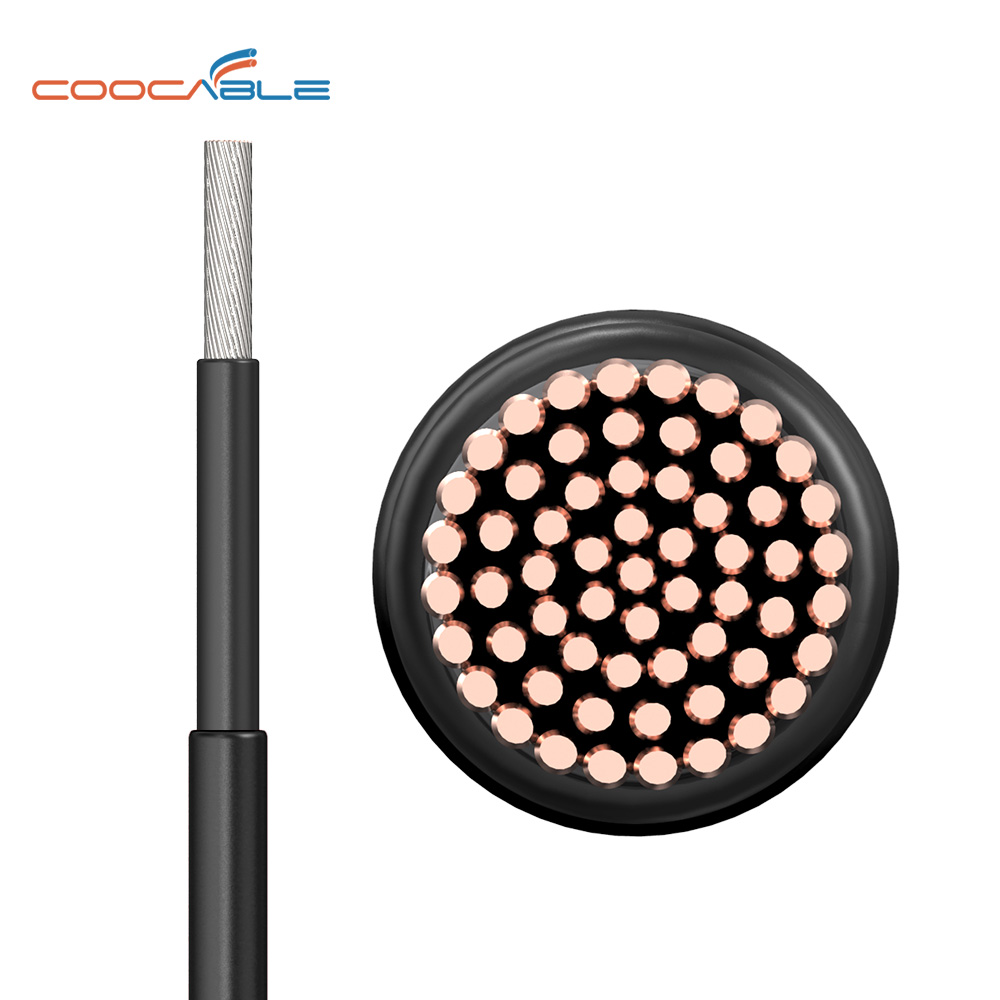

Construction
Conductor:Tinned fine copper strands acc.to VDE
0295/IEC 60228, Class 5.
Insulation:XLPO, flame retardant, halogen free
electron-beam cross-linked.
Jacket:XLPO, flame retardant, halogen free, electron-beam cross-linked.
Insulation color :black
Jacket color :black or red
Electrical characteristics
Rated voltage :DC 1500 V AC Uo/U:1.0/1.0 kV
max.permitted voltage :Uo 1800 V DC
Insulation resistance :1000MΩ/KM
Test Voltage(AC):AC 6. 5kV, 50Hz, 5 min
Mechanical feature
Bending radius :4 x outer diameters
Temperature range :-40℃ to +90℃, Max.temp. at conductor +120℃
Short circuit temperature :250℃ for 5 s
Flame-resistant test :acc.to EN 60332-1-2
Anticipated service life:35years
specifications of the products
model | 标称截面（mm²） | 导体结构（mm） | 导体直径（mm） | 绝缘厚度（mm） | 护套厚度（mm） | 电缆直径（mm） | 电流电阻为20℃(Ω/km) |
H1z2z2-k | 1.5 | 30/0.2 | 1.6 | 1.0 | 0.8 | 5.2 | 12.2 |
H1z2z2-k | 2.5 | 50/0.2 | 2.0 | 1.0 | 0.8 | 5.6 | 7.56 |
H1z2z2-k | 4 | 56/0.3 | 2.6 | 1.0 | 0.9 | 6.4 | 4.7 |
H1z2z2-k | 6 | 84/0.3 | 3.2 | 1.0 | 0.9 | 7 | 3.11 |
H1z2z2-k | 10 | 142/0.41 | 4.4 | 1.0 | 0.9 | 8.2 | 1.84 |
H1z2z2-k | 16 | 228/0.41 | 5.5 | 1.0 | 1.1 | 9.7 | 1.16 |
H1z2z2-k | 25 | 361/0.41 | 6.5 | 1.2 | 1.2 | 11.3 | 0.734 |
H1z2z2-k | 35 | 525/0.41 | 7.5 | 1.2 | 1.2 | 12.3 | 0.529 |
