How to use PV wire 6mm

application

Solar cable is used in photovoltaic systems, and it is a part of photovoltaic power generation systems that cannot be underestimated, affecting the safety of the entire photovoltaic project. Photovoltaic special cables are often used to connect photovoltaic cell modules and DC combiner boxes, as well as internal and external and fixed installation in conduits or systems. used in the environment.

PV wire 6mm specification

Construction

Conductor: Tinned fine copper strands ACC. to VDE

0295/IEC 60228, Class 5.

Insulation: XLPO, flame retardant, halogen-free

electron-beam cross-linked.

Jacket: XLPO, flame retardant, halogen-free, electron-beam cross-linked.

Insulation color :black

Jacket color: black or red

Electrical characteristics

Rated voltage: DC 1500 V AC Uo/U: 1.0/1.0 kV

max. permitted voltage: Uo 1800 V DC

Insulation resistance:1000MΩ/KM

Test Voltage(AC): AC 6.5kV, 50Hz, 5min

Mechanical feature

Bending radius:4 x outer diameters

Temperature range:-40℃ to +90℃, Max. temp. at conductor +120℃

Short circuit temperature:250℃ for 5 s

Flame-resistant test :acc.to EN 60332-1-2

Anticipated service life: 25years

Advantages

Double insulated Electron-beam cross-linked compounds

Meter marking - easy installation

UV, ozone, and hydrolysis resistant

Halogen-free, flame retardant

Meter marking - easy installation

Compatible with all connectors

Flexible, easy to strip

Instructions

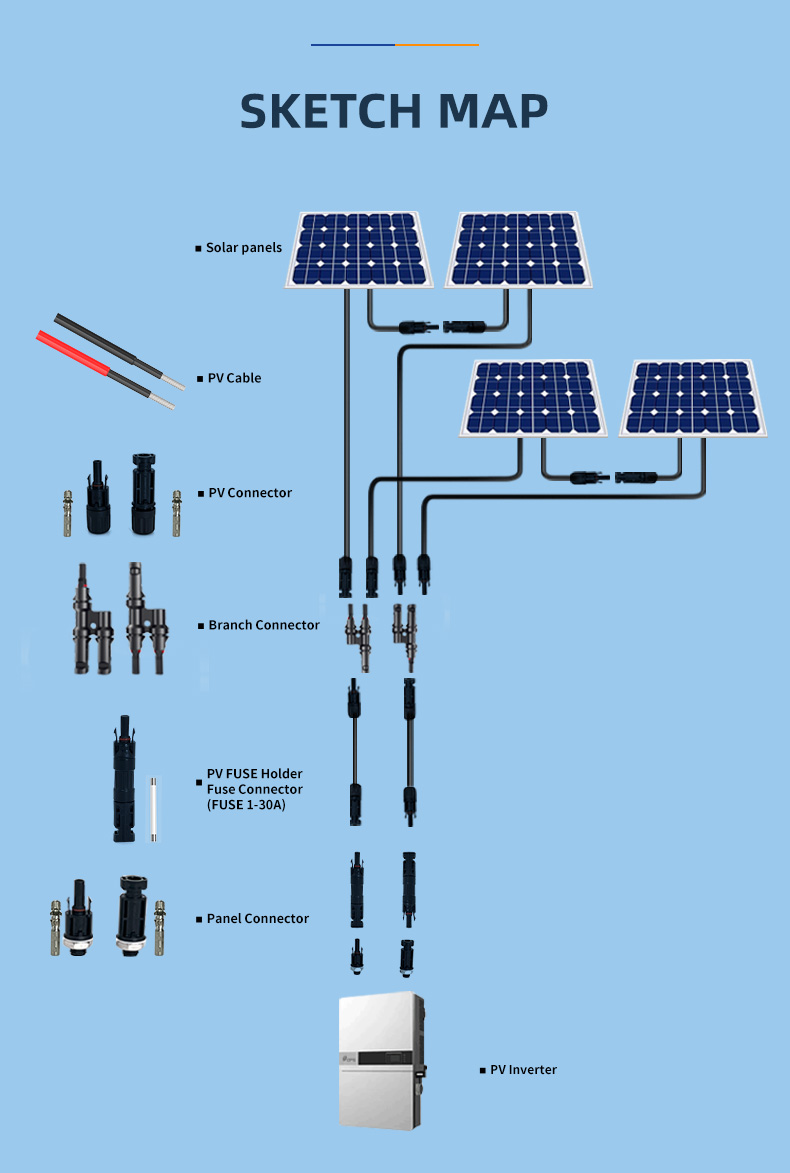

First, peel off 3-4 cm of the outer sheath of the solar cable, expose the conductor, connect it to the solar panel, connect it through various types of connectors, and finally export the current from the inverter. (The specific operation is shown in the figure)
