Fiber optic ROV cable — ROV tether cable

fiber optic floating rove cable

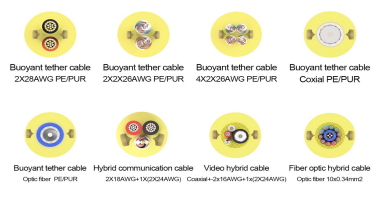

product structure

Zero floating network cable Optical fiber floating cable structure:

Conductor: high-flex fine stranded (99.9%) oxygen-free copper wire (or changed to tinned copper conductor)

Insulation: High-density synthetic PE weather-resistant cyanoplastic

Core color: black number to distinguish or color core color to distinguish

Shielding: aluminum foil Mylar wrapping, high-flex tinned copper mesh braided shielding

Tensile filling: Kevlar bulletproof wire has a tensile strength of more than 300KG, and the breaking force can be greater than T

Sheath: highly flexible PUR composite material wear-resistant, tensile, waterproof, oil-resistant, cold-resistant, corrosion-resistant

Color: orange, yellow, blue, etc.

Details:

Waterproof Design of Optical Fiber Floating Cable:

1: Longitudinal watertight cables use water-blocking glue or foamed water-blocking tape to delay the speed of who flows inside the cable when the sheath is damaged, and improve the reliability of equipment use.

sex.

2: The traditional watertight cable is sealed with yin water paste. After the yin water paste is solidified at room temperature, the structure of each element is tightly combined to form a solid whole to achieve water resistance.

Features:

*Signal transmission performance; RS45 twisted pair shielded cable, single and dual-mode fiber, etc. can be added, and the image transmission quality is high.

Tensile and pumping resistance. The inspection adopts the PUR external inspection protection material imported from the United States, and the cable core is designed with torsion resistance and bending resistance.

Excellent tensile strength: Kevlar fiber filling can increase the tensile strength according to customer requirements.

Cable, this cable is suitable for high watertight, bending-resistant multi-core integrated cables in the fields of ships, offshore oil platforms, deep-sea resource exploration, etc., and can be designed and customized for submarine towed network cables

Longitudinal watertight cable is Liyue water blocking glue or foaming raw water tape.

case, delay the speed of who is flowing inside the cable and improve the reliability of equipment use

The traditional watertight cable is sealed with a water-blocking paste. After the water-blocking paste is cured at room temperature, the

The structure of each element is closely combined to form a solid whole to achieve the effect of water blocking.
