solar cable is used in photovoltaic systems, and it is a part of photovoltaic power generation systems that cannot be underestimated, affecting the safety of the entire photovoltaic project. photovoltaic special cables are often used to connect photovoltaic cell modules and dc combiner boxes, as well as internal and external and fixed installation in conduits or systems. used in the environment.

6mm dc solar cable specifications

construction

conductor: tinned fine copper strands acc.to vde 0295/iec 60228, class 5.

insulation:xlpo, flame retardant, halogen free electron-beam cross-linked.

jacket: xlpo, flame retardant, halogen free, electron-beam cross-linked.

insulation color :black

jacket color :black or red

electrical characteristics

rated voltage: dc 1500 v ac uo/u: 1.0/1.0 kvmax.permitted

voltage :uo 1800 v dc

insulation resistance:1000mω/km

test voltage(ac): ac 6.5kv, 50hz, 5min mechanical feature

bending radius :4 x outer diameters

temperature range :-40℃ to +90℃, max.temp. at conductor +120℃

short circuit temperature :250℃ for 5 s

flame-resistant test :acc.to en 60332-1-2

anticipated service life: 30years

advantages

double insulated electron-beam cross-linked compounds

meter marking - easy installation

uv, ozone and hydrolysis resistant

halogen free, flame retardant

meter marking - easy installation

compatible to all connectors

flexible, easy to strip

INSTRUCTIONS

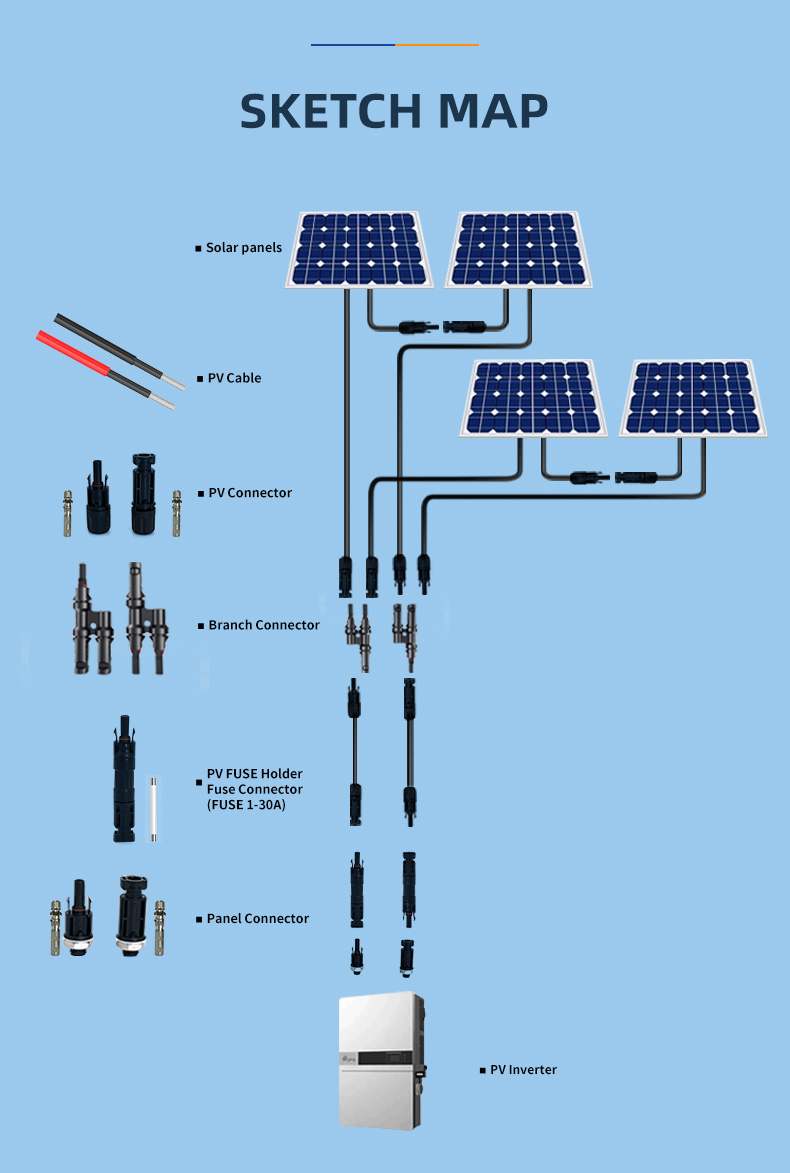

first, peel off 3-4 cm of the outer skin of the solar cable, expose the conductor, connect it to the solar panel, and then connect it through various types of connectors, and finally export the current from the inverter. (the specific operation is shown in the figure)

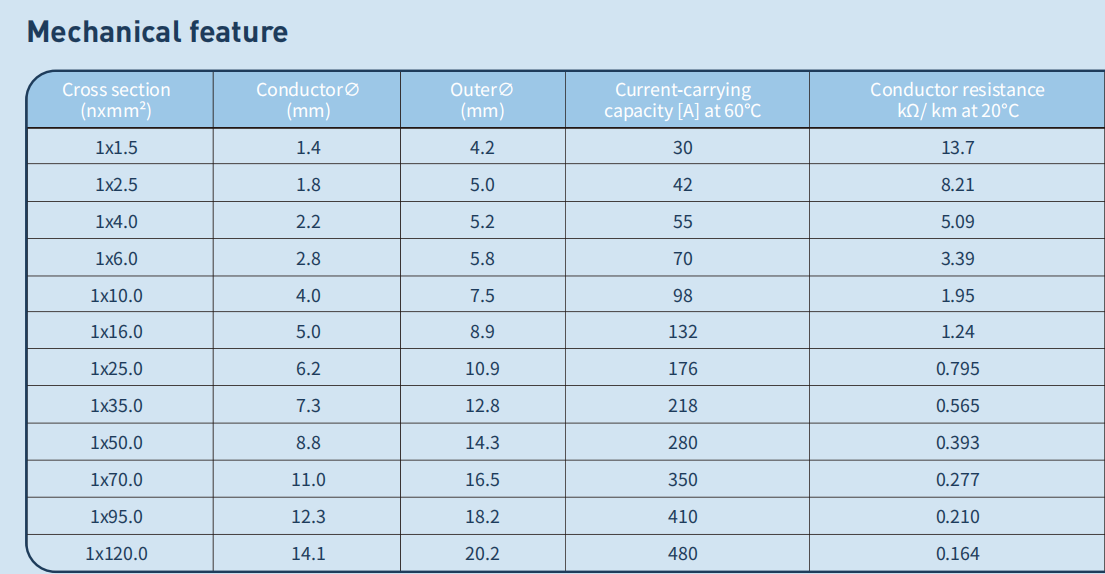

solar cable parameters
