50mm2 Black N2XRY Copper Conductors XLPE/PVC 0.6/1KV Power cable

50mm2 Black N2XRY Copper Conductors XLPE/PVC 0.6/1KV Power cable

: COOCABLE
:
:
- Working voltage: 600/1000 V
- Test voltage: 3500 V
- Minimum bending radius: 15 x Ø
- Operating temperature during application: -5º C ~ +70º C
- Fixed installation temperature: - 30º C ~ +70º C
- Achievable temperature during short circuit: +250º C
- Flame Retardant: IEC 60332.1
- Insulation resistance: >20 MΩ x km
: N2XRY

50mm2 Black N2XRY Copper Conductors XLPE/PVC 0.6/1KV Power cable

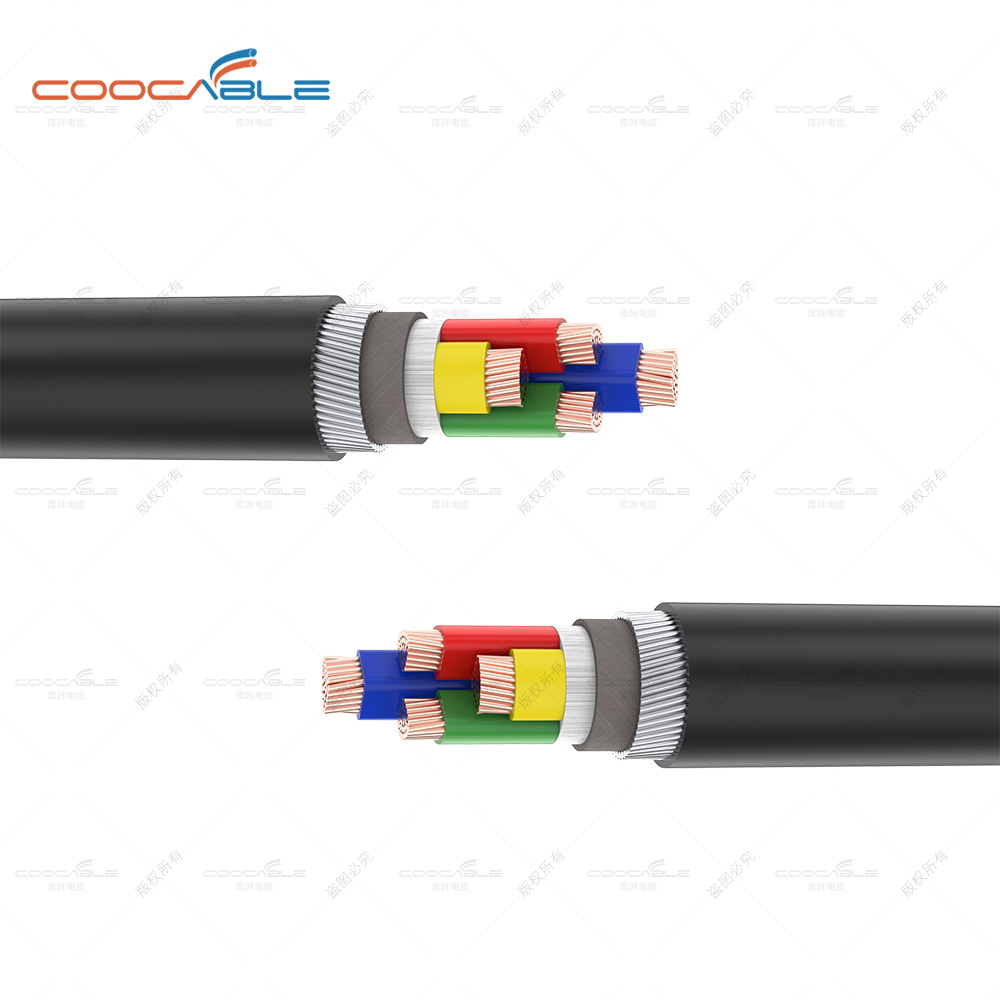

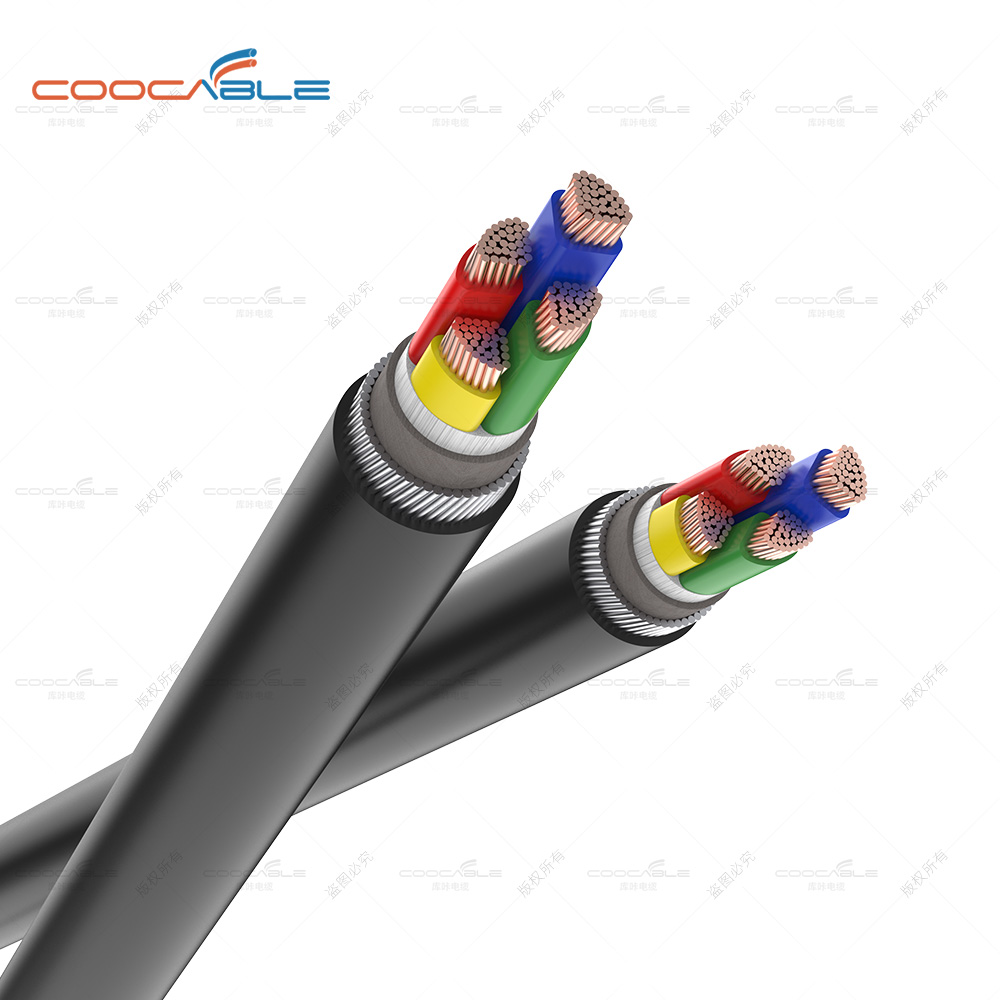

50mm2 Black N2XRY Copper Conductors XLPE/PVC 0.6/1KV Power cable (图1)

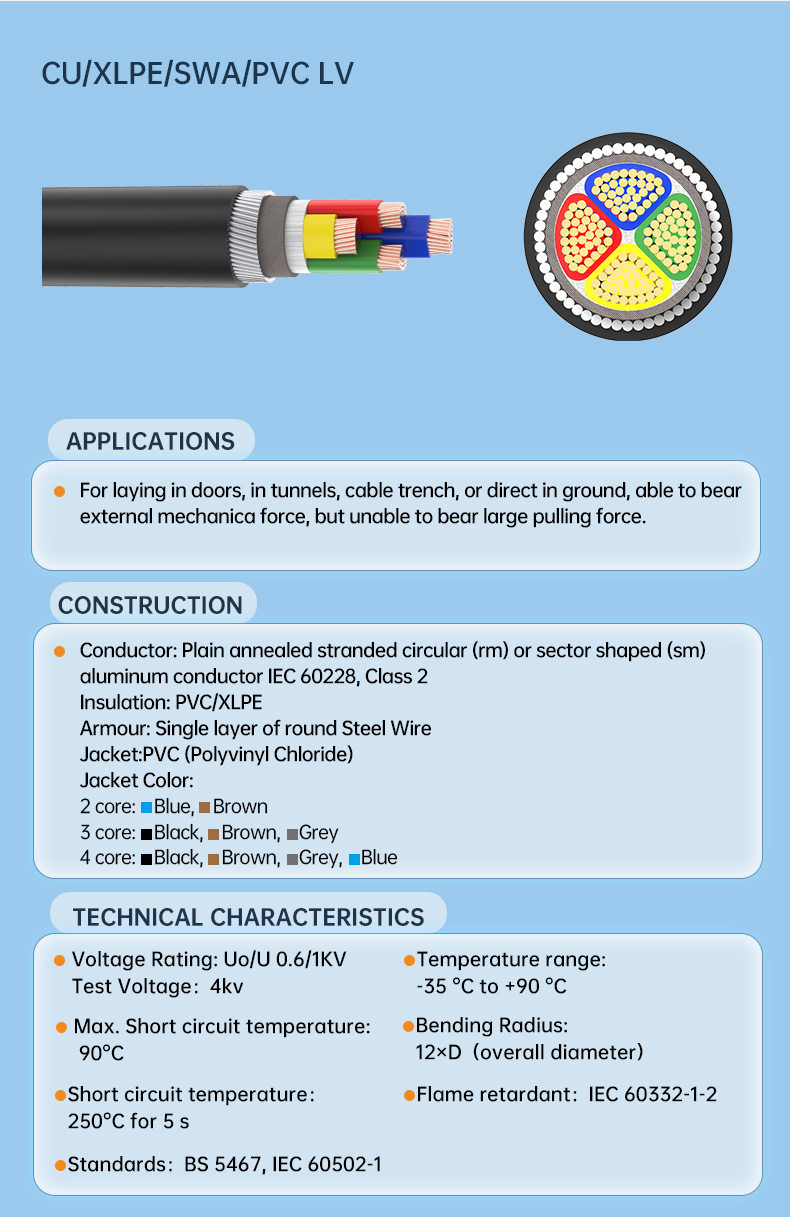

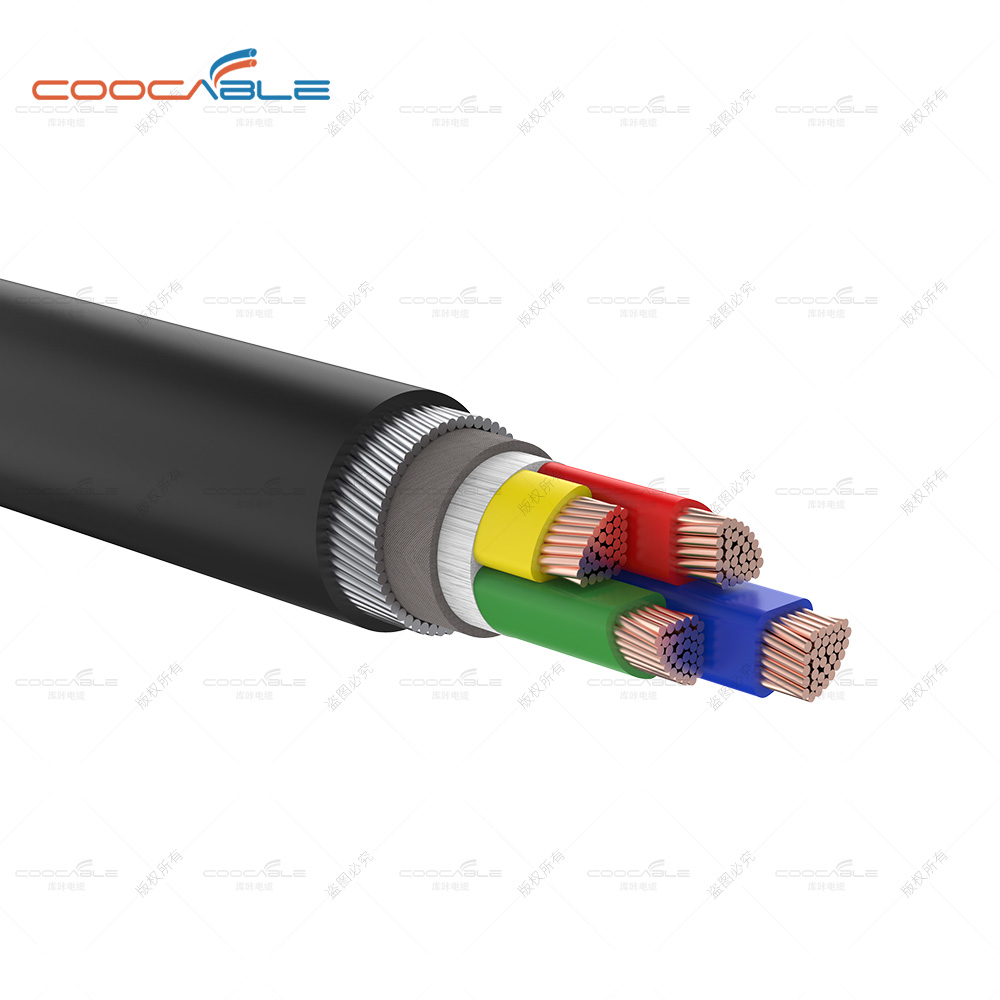

50mm2 Black N2XRY Copper Conductors XLPE/PVC 0.6/1KV Power cable (图2)

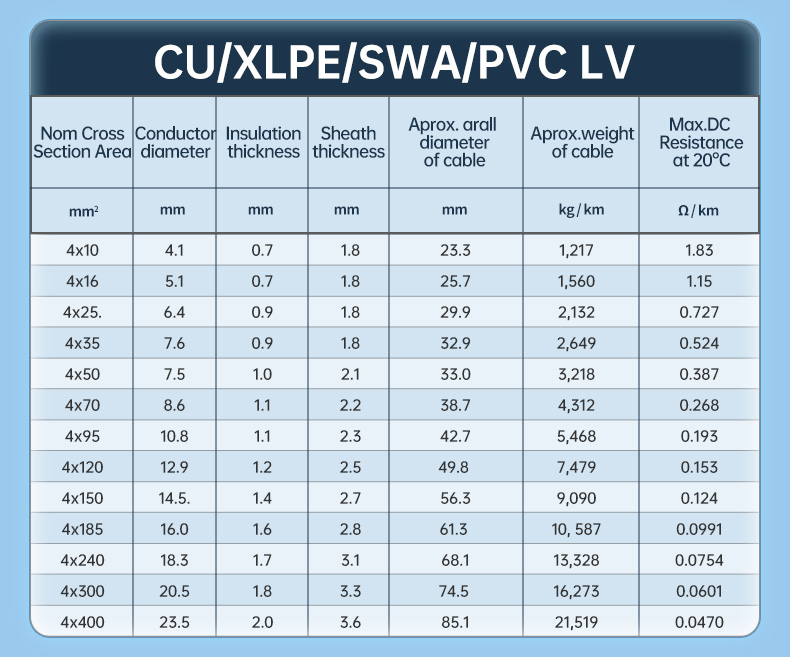

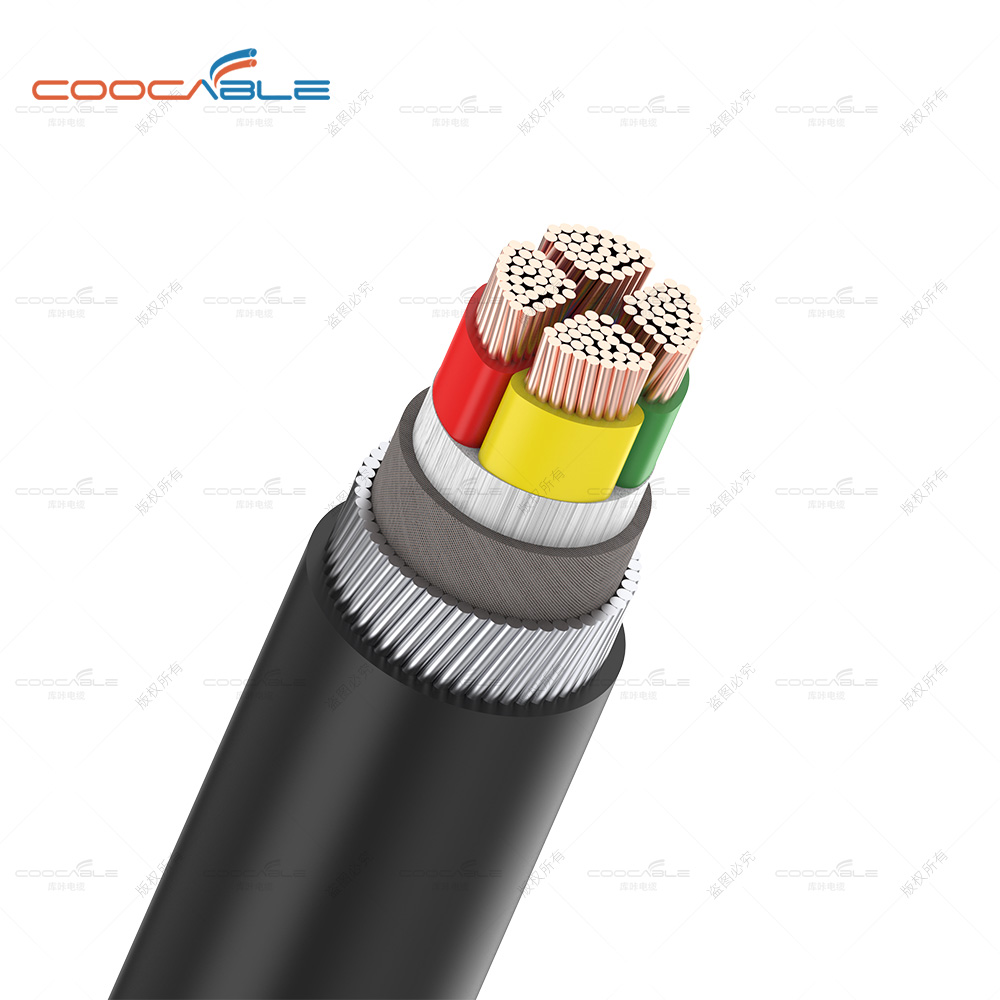

50mm2 Black N2XRY Copper Conductors XLPE/PVC 0.6/1KV Power cable (图3)

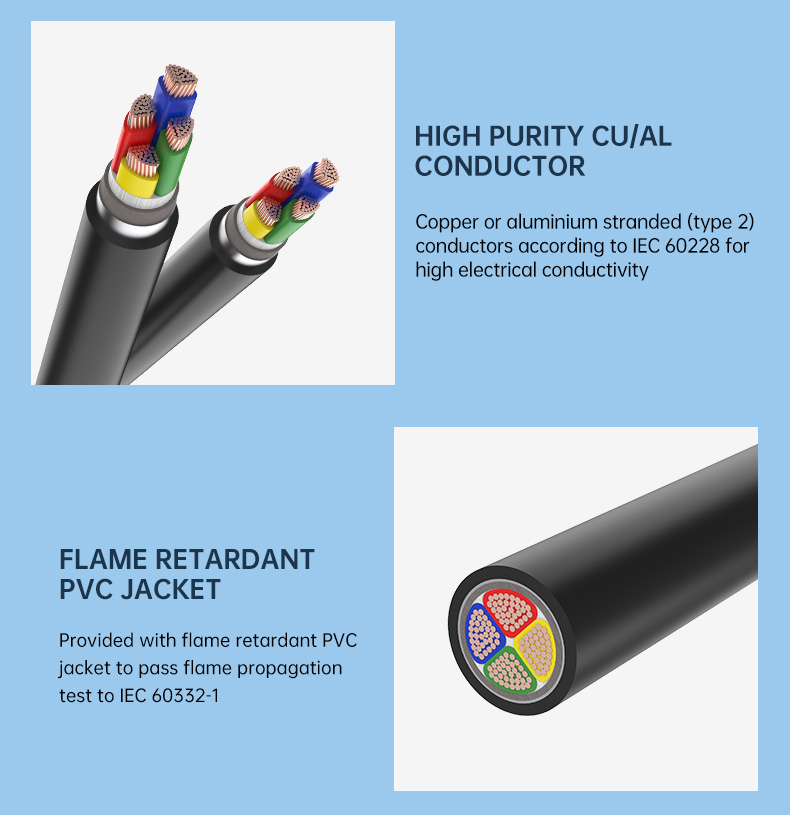

50mm2 Black N2XRY Copper Conductors XLPE/PVC 0.6/1KV Power cable (图4)

50mm2 Black N2XRY Copper Conductors XLPE/PVC 0.6/1KV Power cable (图5)

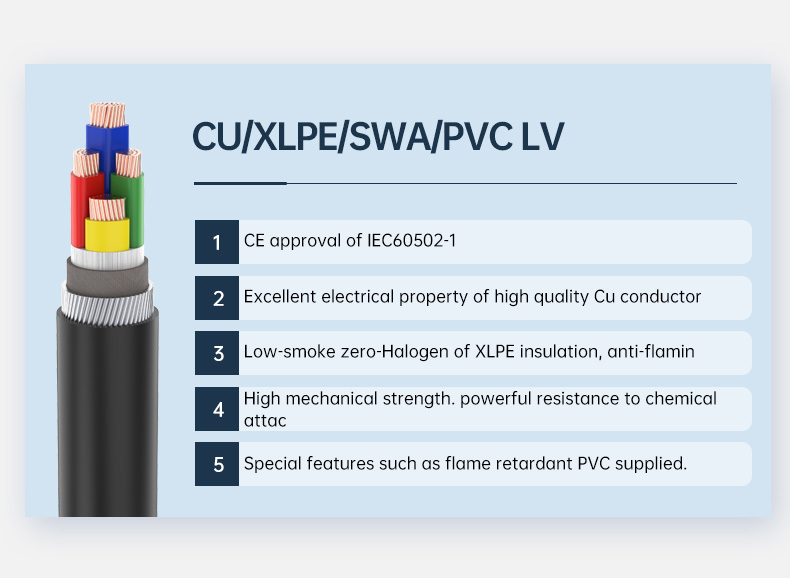

50mm2 Black N2XRY Copper Conductors XLPE/PVC 0.6/1KV Power cable (图6)

50mm2 Black N2XRY Copper Conductors XLPE/PVC 0.6/1KV Power cable (图7)

50mm2 Black N2XRY Copper Conductors XLPE/PVC 0.6/1KV Power cable (图8)

50mm2 Black N2XRY Copper Conductors XLPE/PVC 0.6/1KV Power cable (图9)

50mm2 Black N2XRY Copper Conductors XLPE/PVC 0.6/1KV Power cable (图10)

50mm2 Black N2XRY Copper Conductors XLPE/PVC 0.6/1KV Power cable (图11)

50mm2 Black N2XRY Copper Conductors XLPE/PVC 0.6/1KV Power cable (图12)

50mm2 Black N2XRY Copper Conductors XLPE/PVC 0.6/1KV Power cable (图13)


