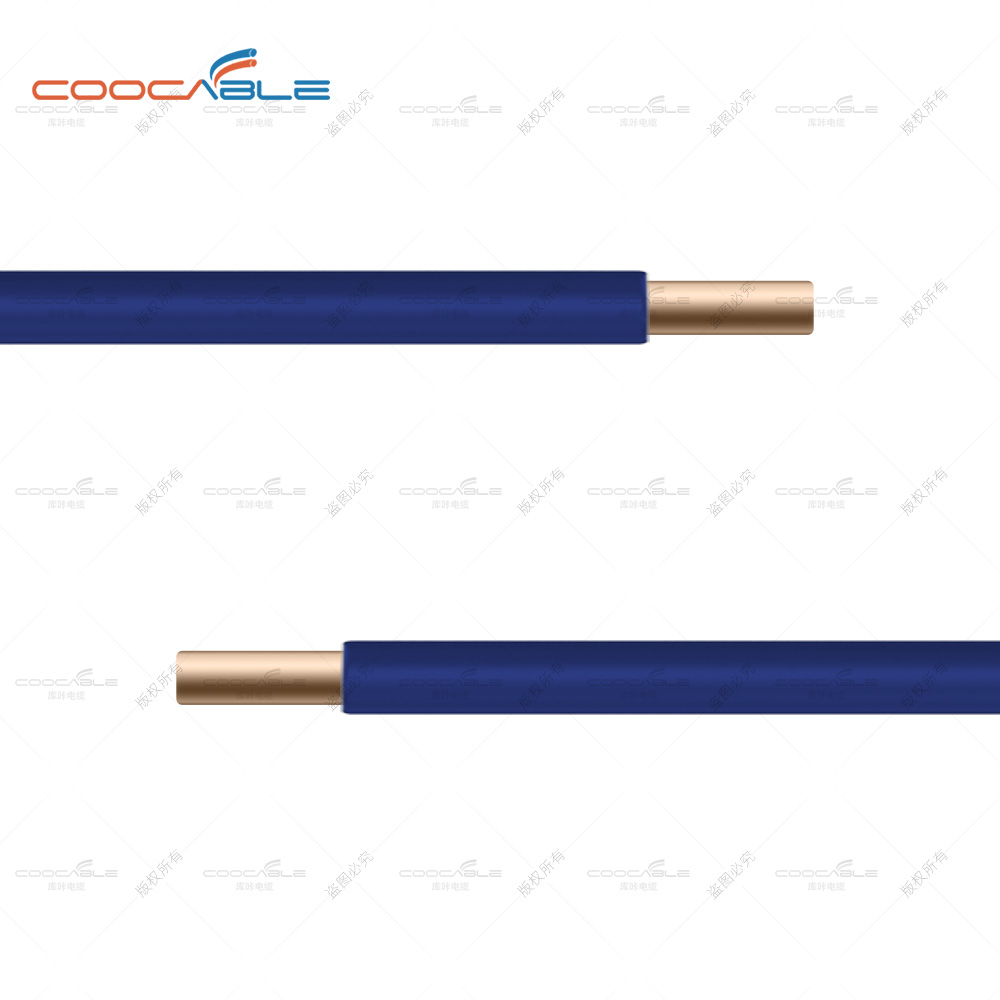

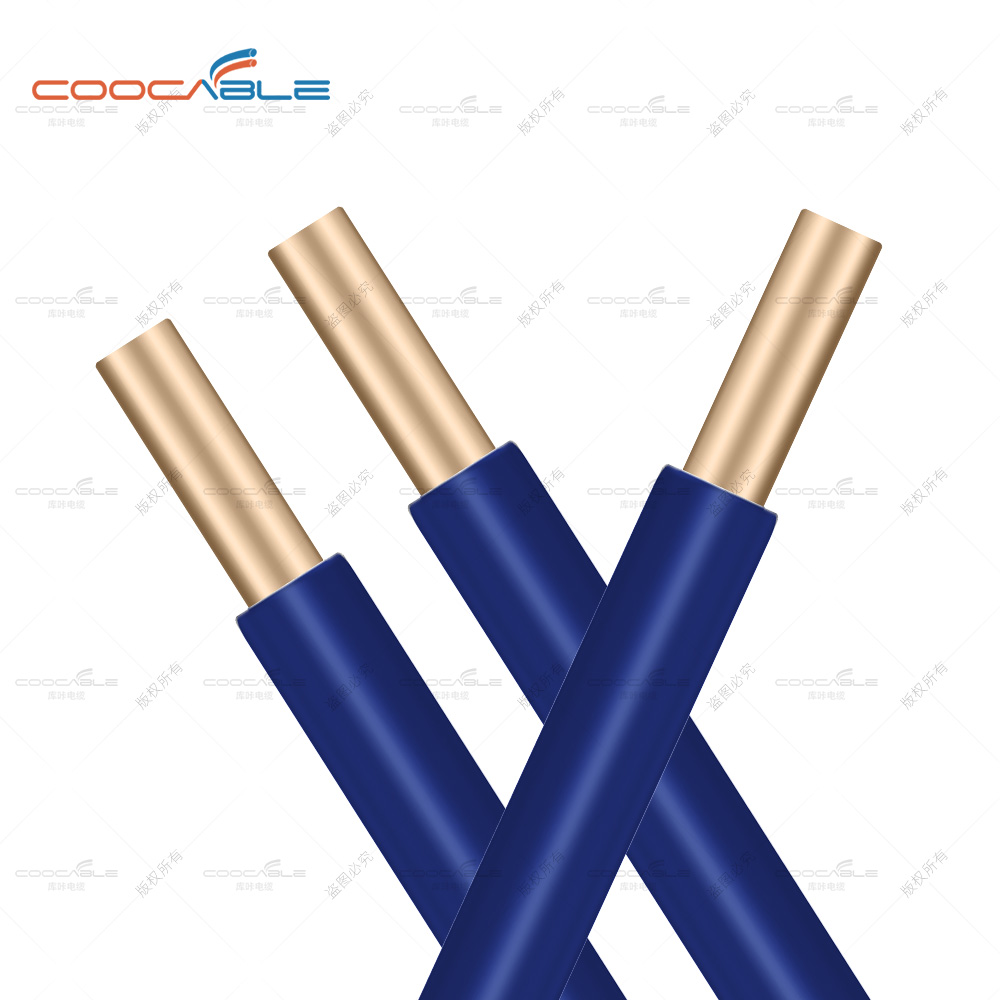

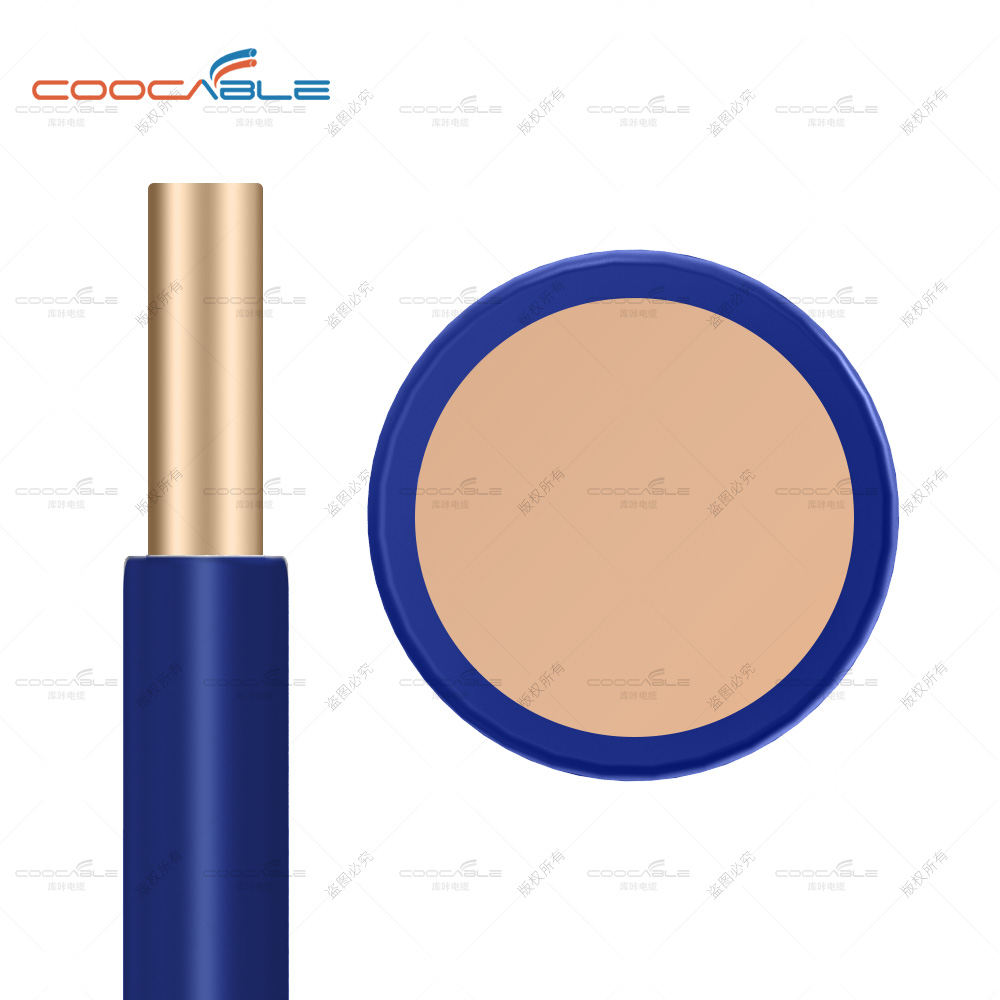

Ce Certificate H05V2-U H07V2-U Solid Pure Copper Single Core rubber Cable 16Awg 17Awg 18Awg 20Awg
  • COOCABLE

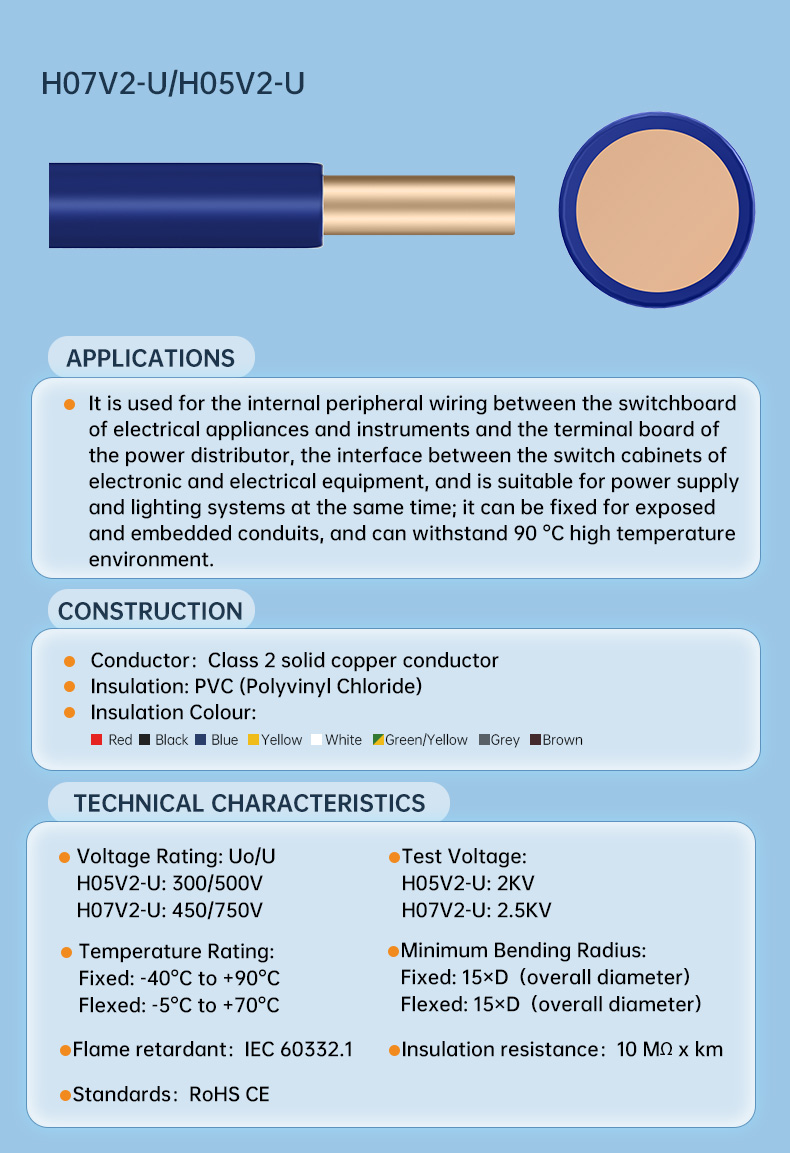

  • operating voltage: 450/750v (h07v2-u)

    - test voltage:2000V(h05v2-u)/2500V (h07v2-u)

    - dynamic bending radius: 15 x Ø - static bending radius: 15 x Ø

    - operating temperature when applied: -5 C to +70 C

    - acceptable temperature at rest: -30 C to +80 C

    - temperature achievable in case of short circuit: +160 C

    - flame retardant: IEC 60332.1

    - insulation resistance: 10 M Ω x km

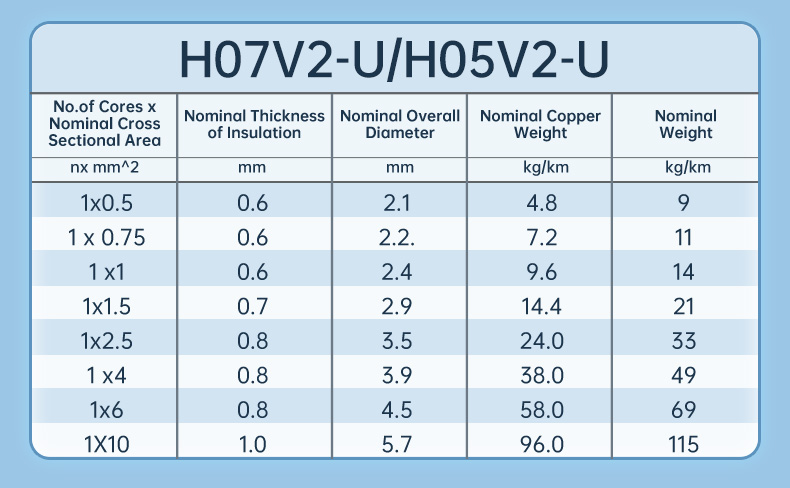

  • H05V2-U H07V2-U
