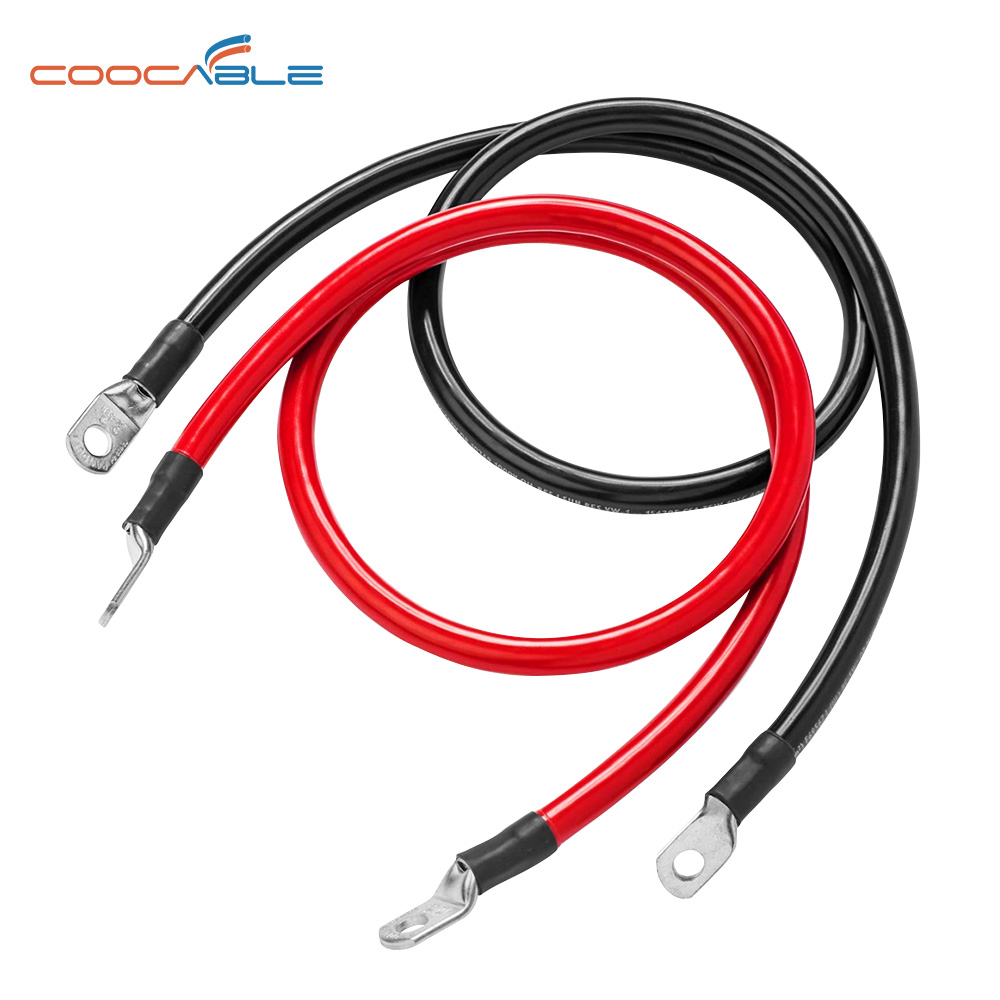

12awg ga 20 in copper Inverter dc solar battery power wire cable car battery cable

12awg ga 20 in copper Inverter dc solar battery power wire cable car battery cable

Medium Voltage:300V

Standard: BS IEC ASTM DIN

temperature: 200℃

Material: tinned copper wire

Core numbers × cross section mm2	Wire core of conductor/mm	Insulator Thickness mm	Normal insulated Thickness mm	Outer diam nominal mm	Outer diam Max mm	Conductor resistance at 20 ≤Ω/Km
Core numbers × cross section mm2	Wire core of conductor/mm	Insulator Thickness mm	Normal insulated Thickness mm	Outer diam nominal mm	Outer diam Max mm	Cu core	Tinning cu-core
2×0.75	24/0.20	0.6	0.8	6.28	7.22	26	26.7
2×1..	32/0.20	0.6	0.9	6.84	7.87	19.5	20
2×1.5	30/0.25	0.7	1	8	9.2	13.3	13.7
2×2.5	49/0.25	0.8	1.1	9.2	10.58	7.98	8.21
3×0.75	24/0.20	0.6	0.9	6.84	7.87	26	26.7
3×1.00	32/0.20	0.6	0.9	7.23	8.31	19.5	20
3×1.5	30/0.25	0.7	1	8.46	9.73	13.3	13.7
3×2.5	49/0.25	0.8	1.1	9.96	11.45	7.98	8.21
4×0.75	24/0.20	0.6	0.9	7.48	8.58	26	26.7
4×1.00	32/0.20	0.6	0.9	7.88	9.06	19.5	20
4×1.5	30/0.25	0.7	1	9.44	10.86	13.3	13.7
4×2.5	49/0.25	0.8	1.2	11.09	12.75	7.98	8.21
2×4	56/0.30	1	1.8	12.8	14.72	4.95	5.09
2×6	84/0.30	1	2	15.2	17.48	3.3	3.39
2×10	84/0.40	1.2	3.1	20.2	23.23	1.91	1.95
2×16	126/0.40	1.2	3.3	22.8	26.22	1.21	1.24
2×25	196/0.40	1.4	3.6	27	31.05	0.78	0.795
2×35	276/0.40	1.4	3.9	30.4	34.96	0.554	0.565
3×4	56/0.30	1	1.9	13.7	15.75	4.95	5.09
3×6	84/0.30	1	2.1	16.3	18.74	3.3	3.39

12awg ga 20 in copper Inverter dc solar battery power wire cable car battery cable

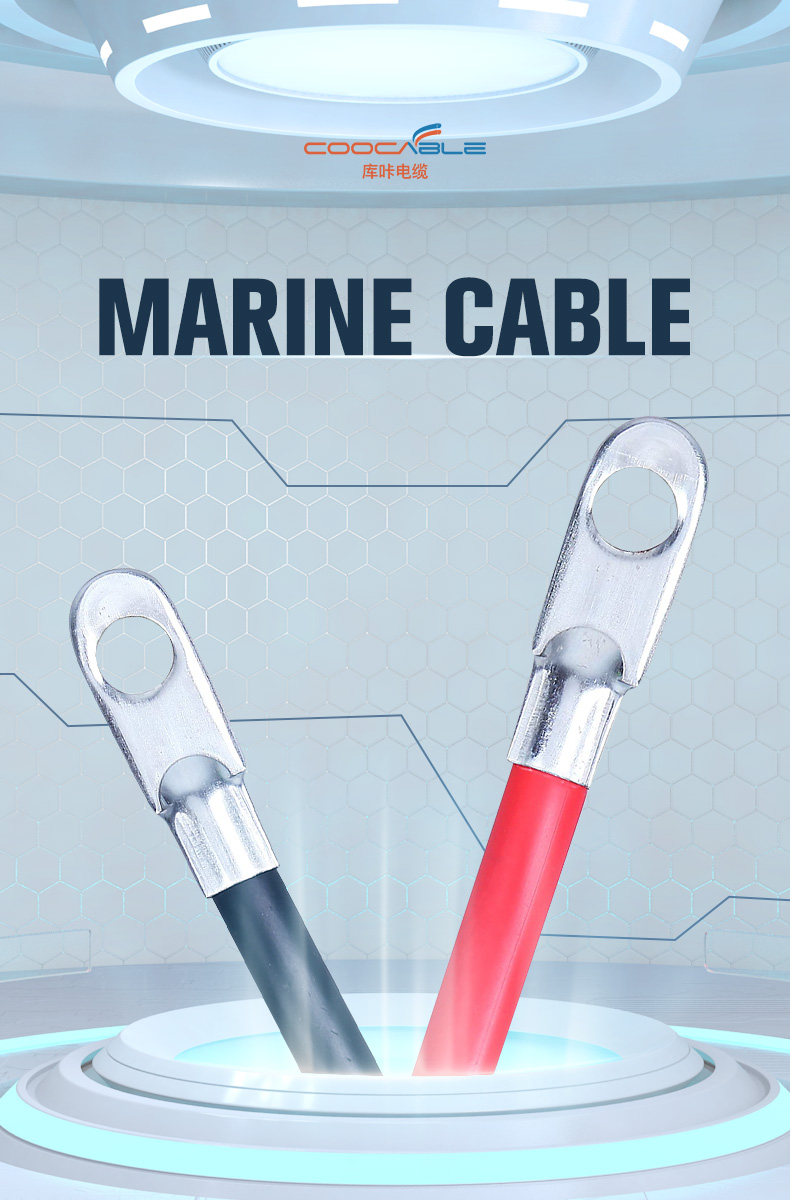

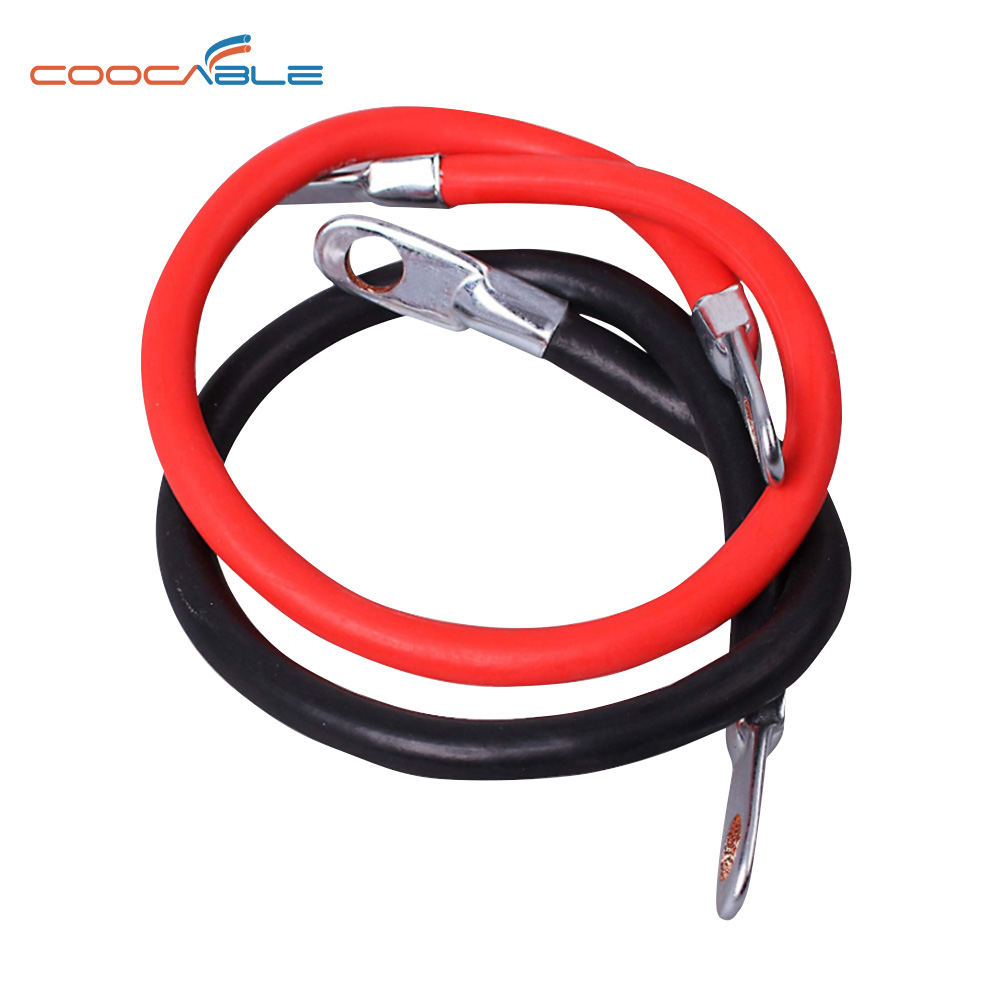

12awg ga 20 in copper Inverter dc solar battery power wire cable car battery cable(图1)

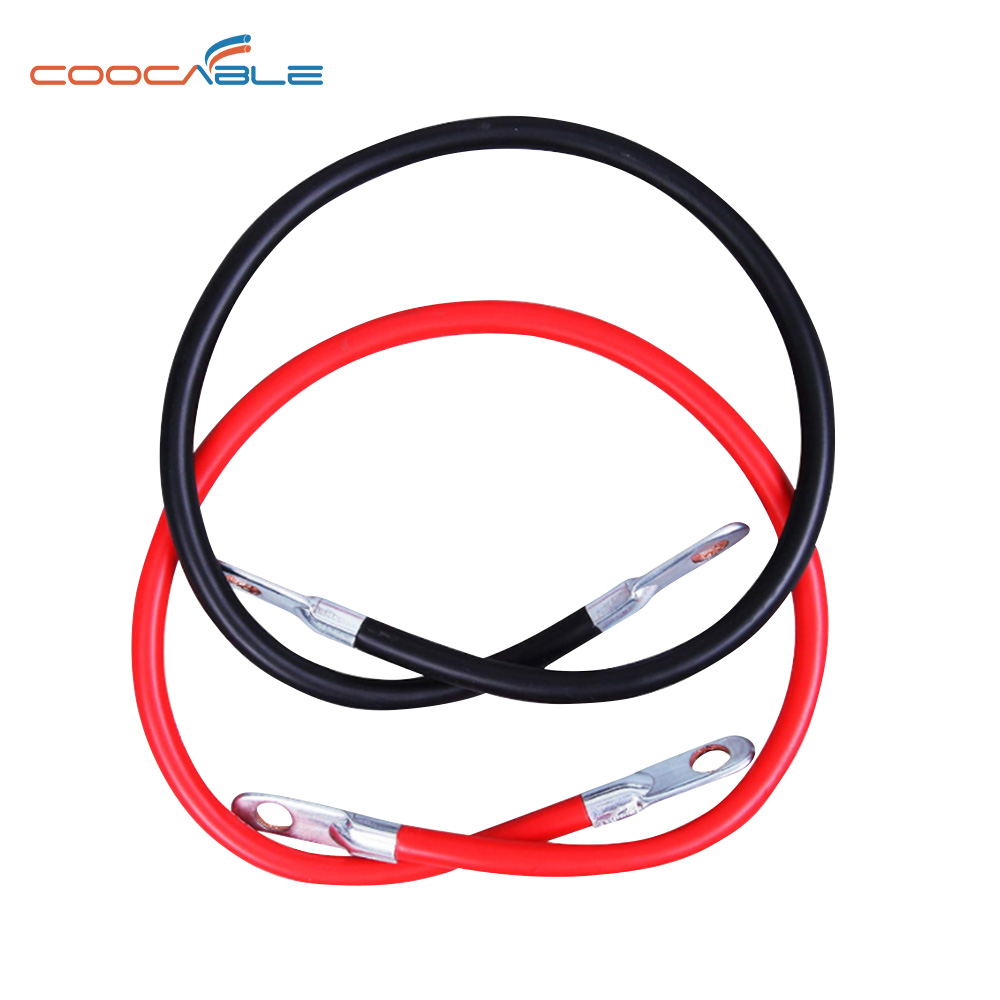

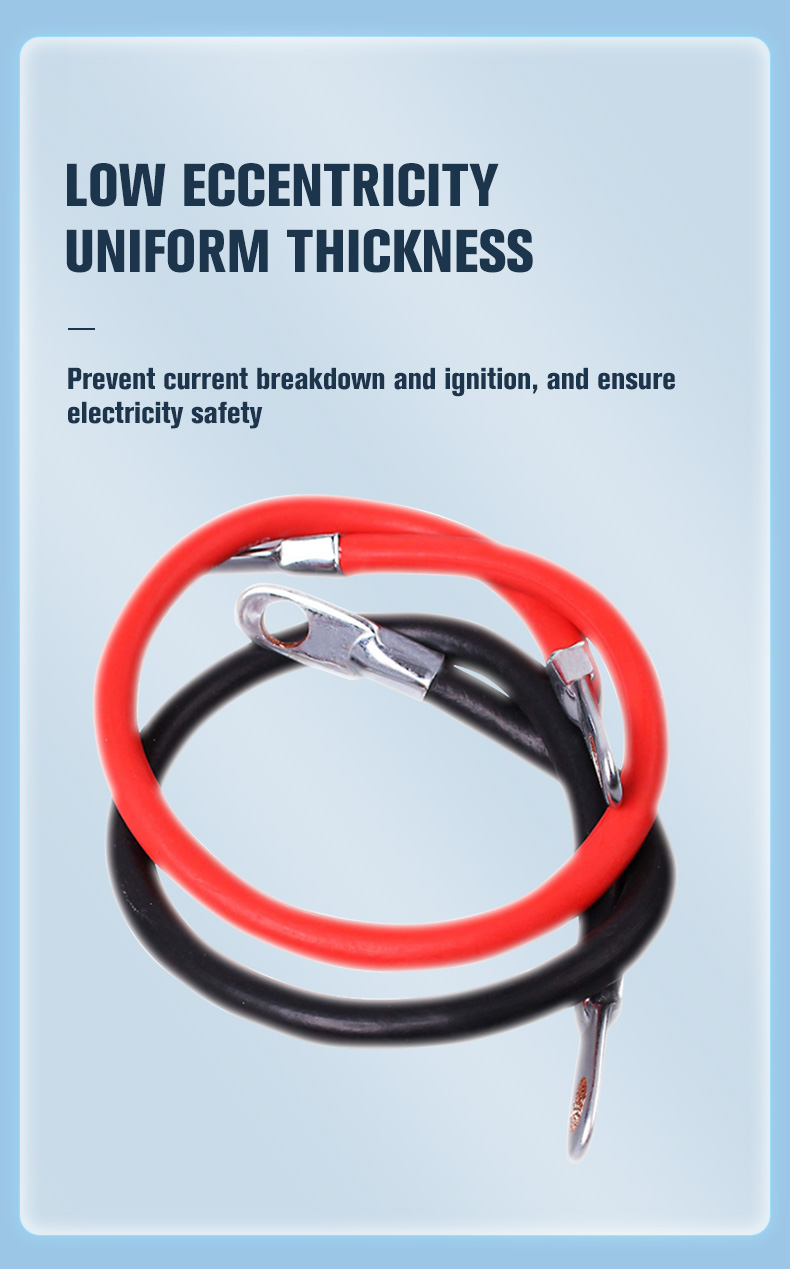

12awg ga 20 in copper Inverter dc solar battery power wire cable car battery cable(图2)

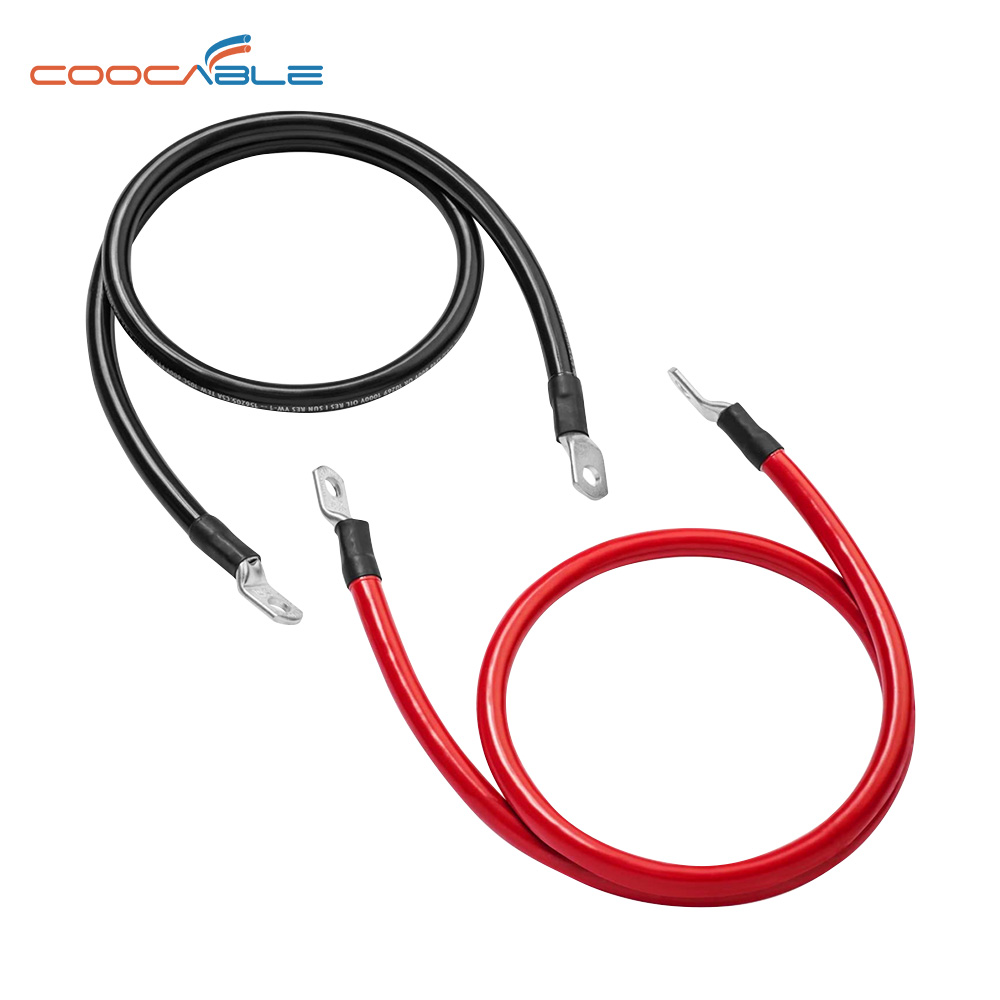

12awg ga 20 in copper Inverter dc solar battery power wire cable car battery cable(图3)

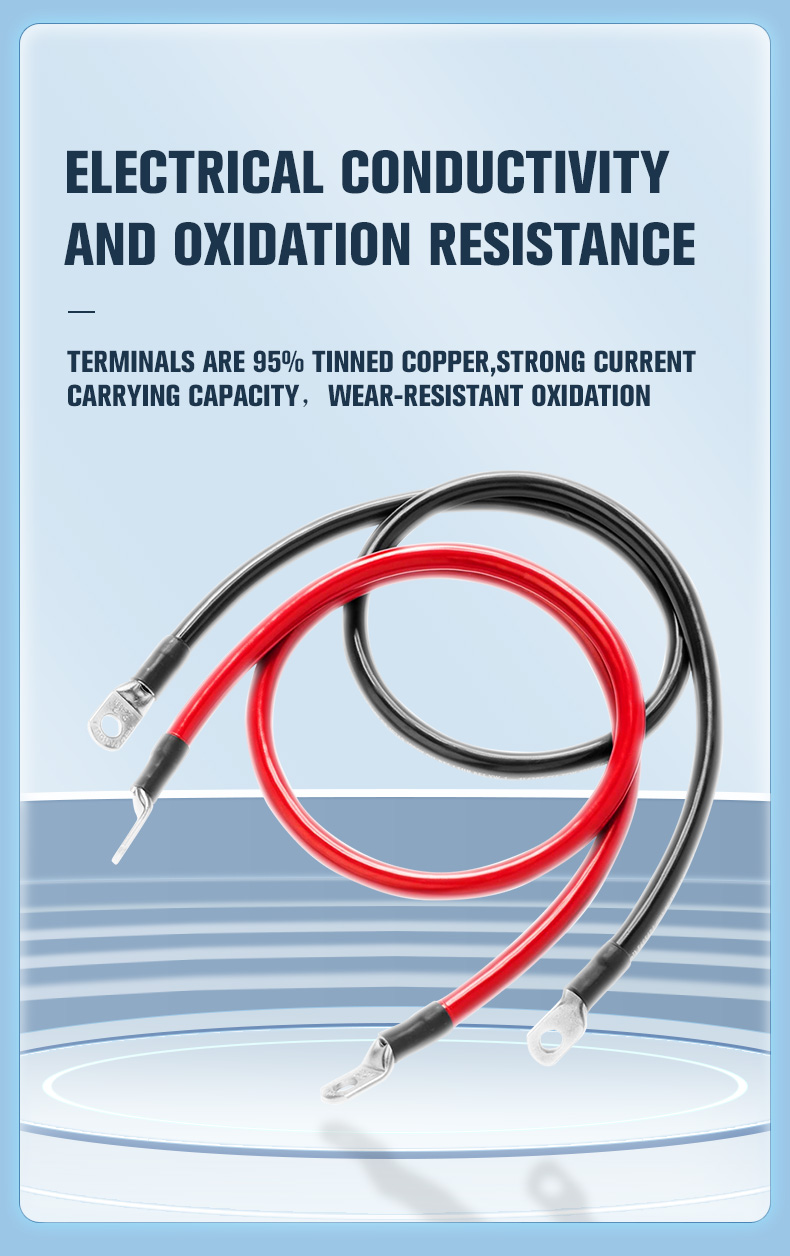

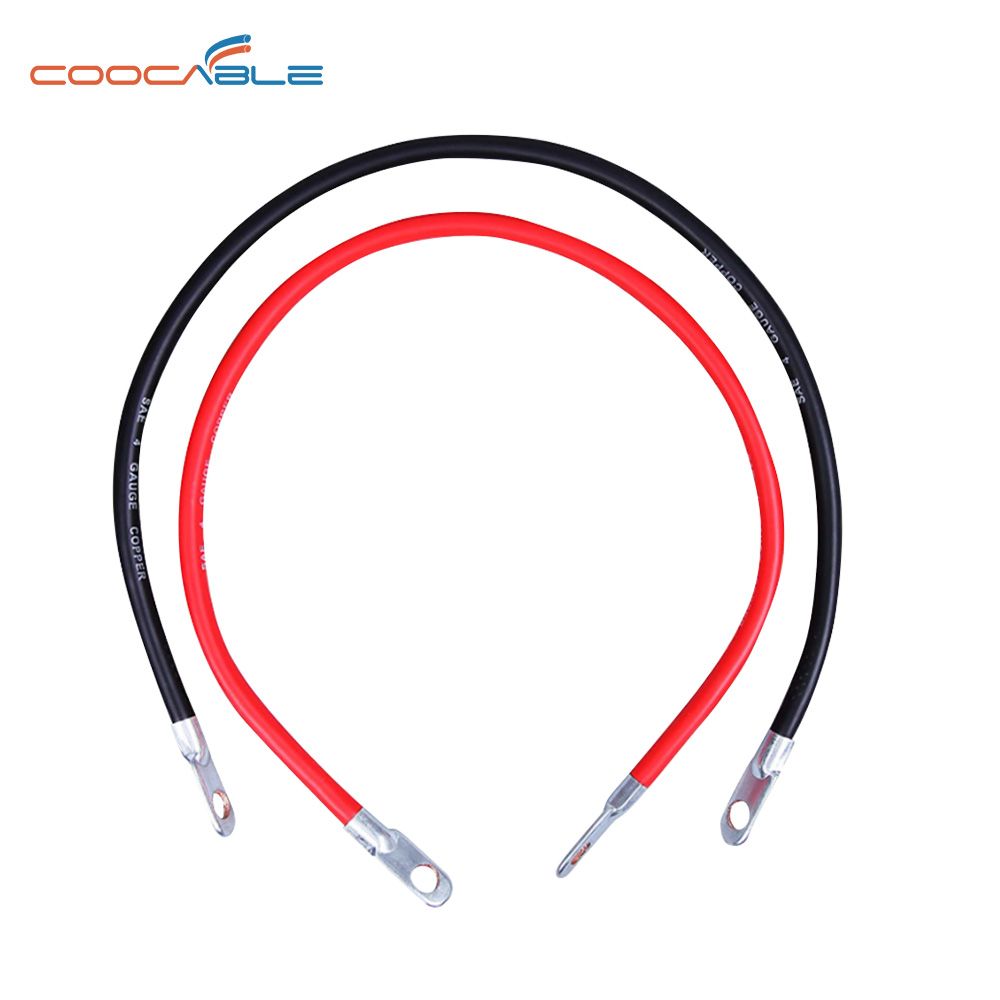

12awg ga 20 in copper Inverter dc solar battery power wire cable car battery cable(图4)

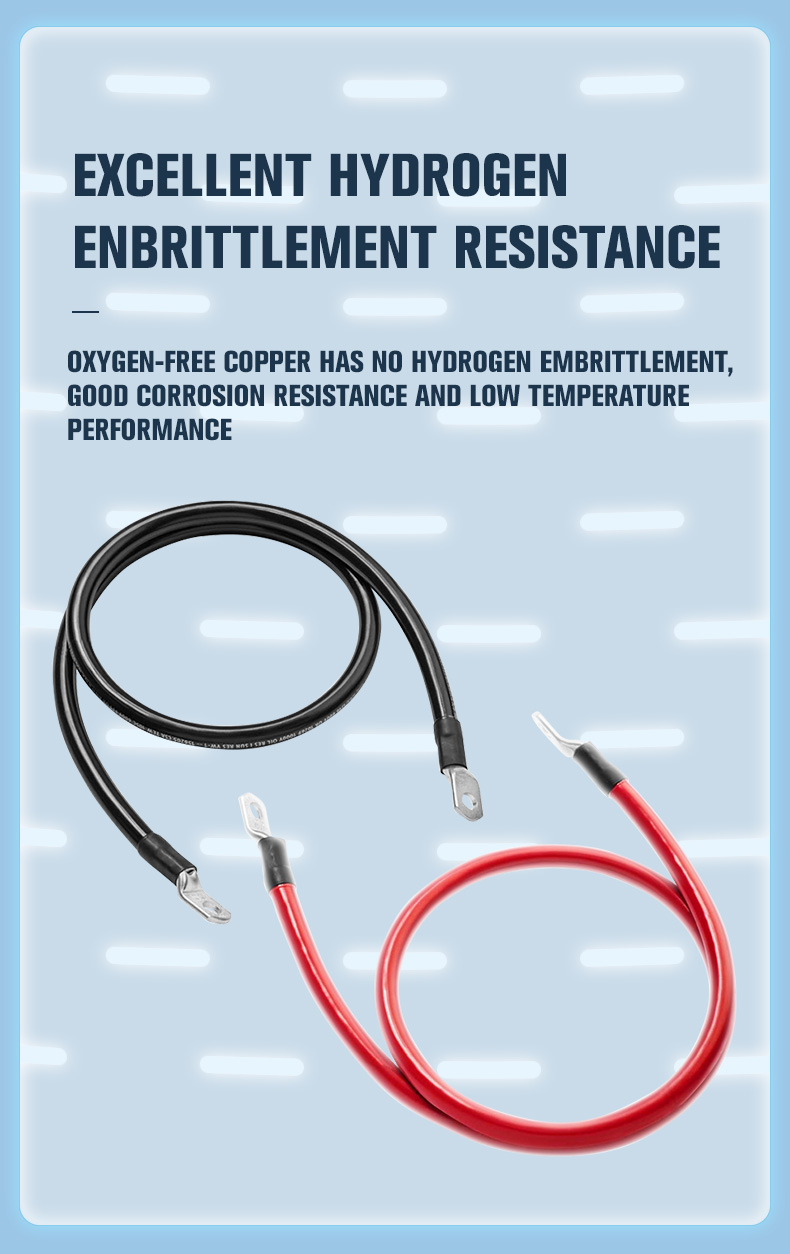

12awg ga 20 in copper Inverter dc solar battery power wire cable car battery cable(图5)

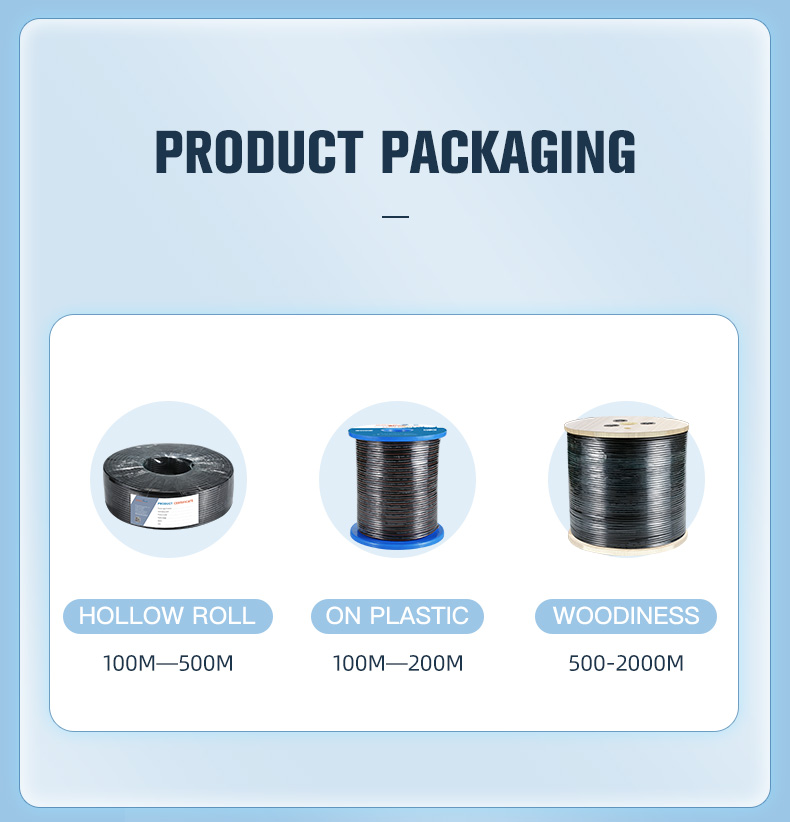

12awg ga 20 in copper Inverter dc solar battery power wire cable car battery cable(图6)

12awg ga 20 in copper Inverter dc solar battery power wire cable car battery cable(图7)

12awg ga 20 in copper Inverter dc solar battery power wire cable car battery cable(图8)

12awg ga 20 in copper Inverter dc solar battery power wire cable car battery cable(图9)

12awg ga 20 in copper Inverter dc solar battery power wire cable car battery cable(图10)

12awg ga 20 in copper Inverter dc solar battery power wire cable car battery cable(图11)

12awg ga 20 in copper Inverter dc solar battery power wire cable car battery cable(图12)

12awg ga 20 in copper Inverter dc solar battery power wire cable car battery cable(图13)

12awg ga 20 in copper Inverter dc solar battery power wire cable car battery cable(图14)

12awg ga 20 in copper Inverter dc solar battery power wire cable car battery cable(图15)
