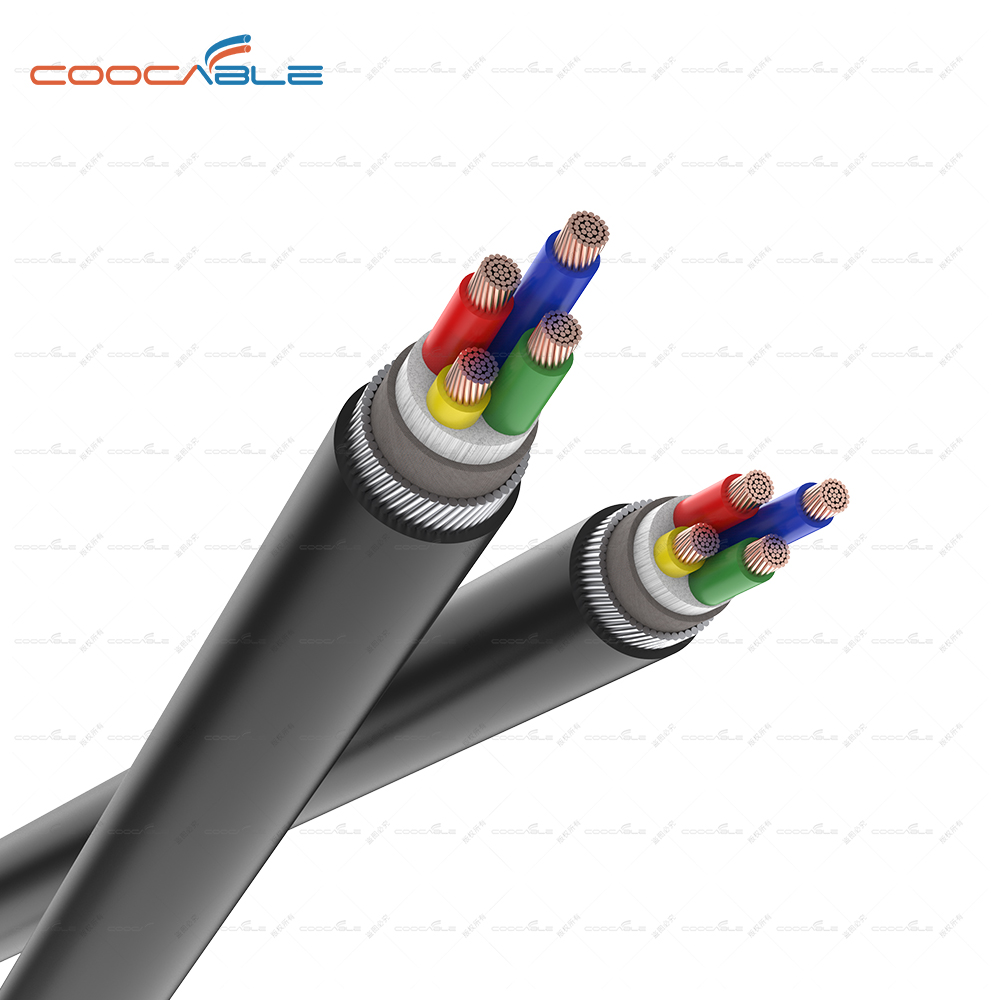

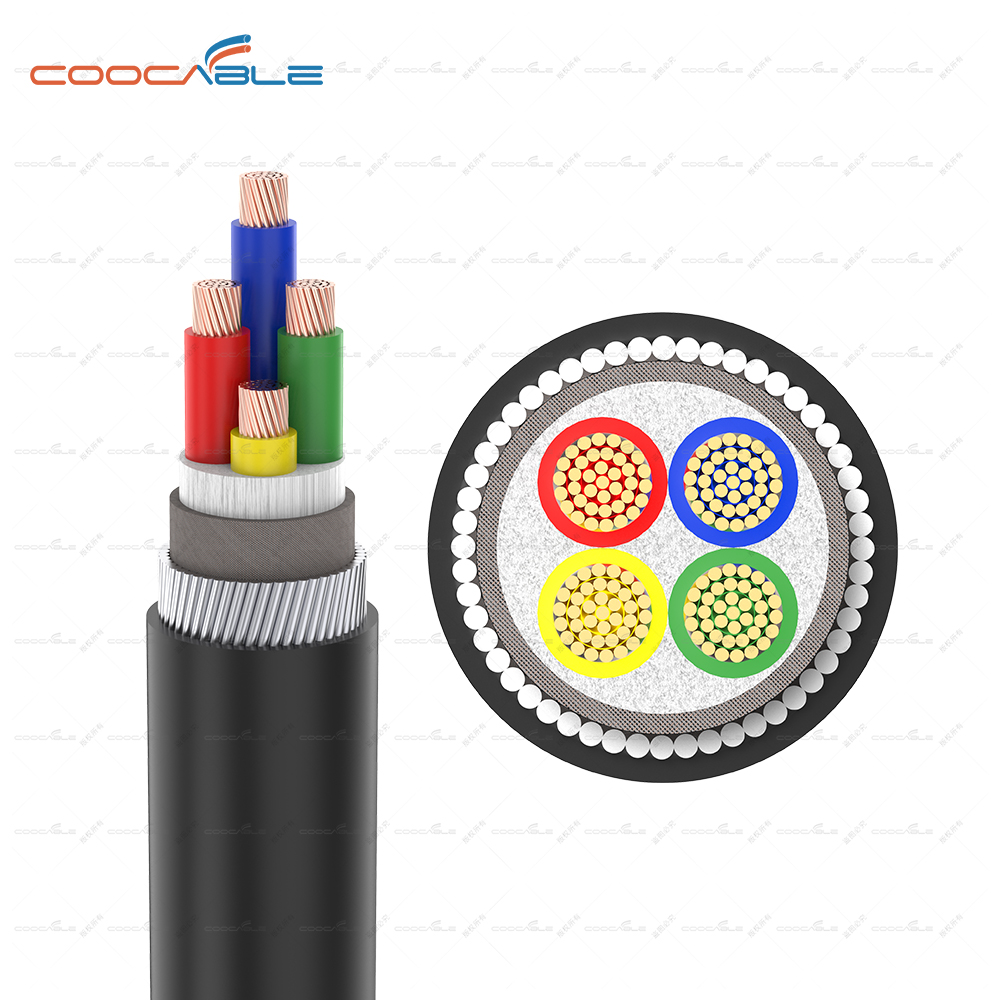

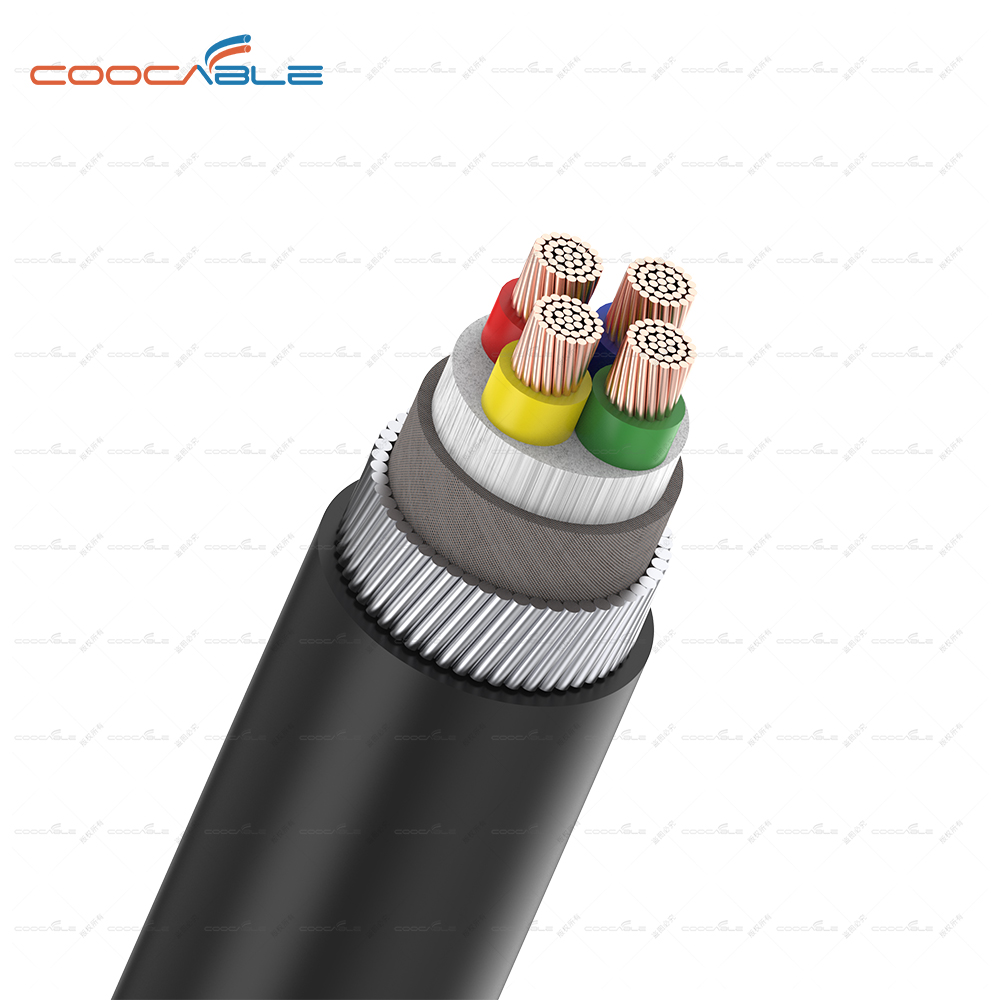

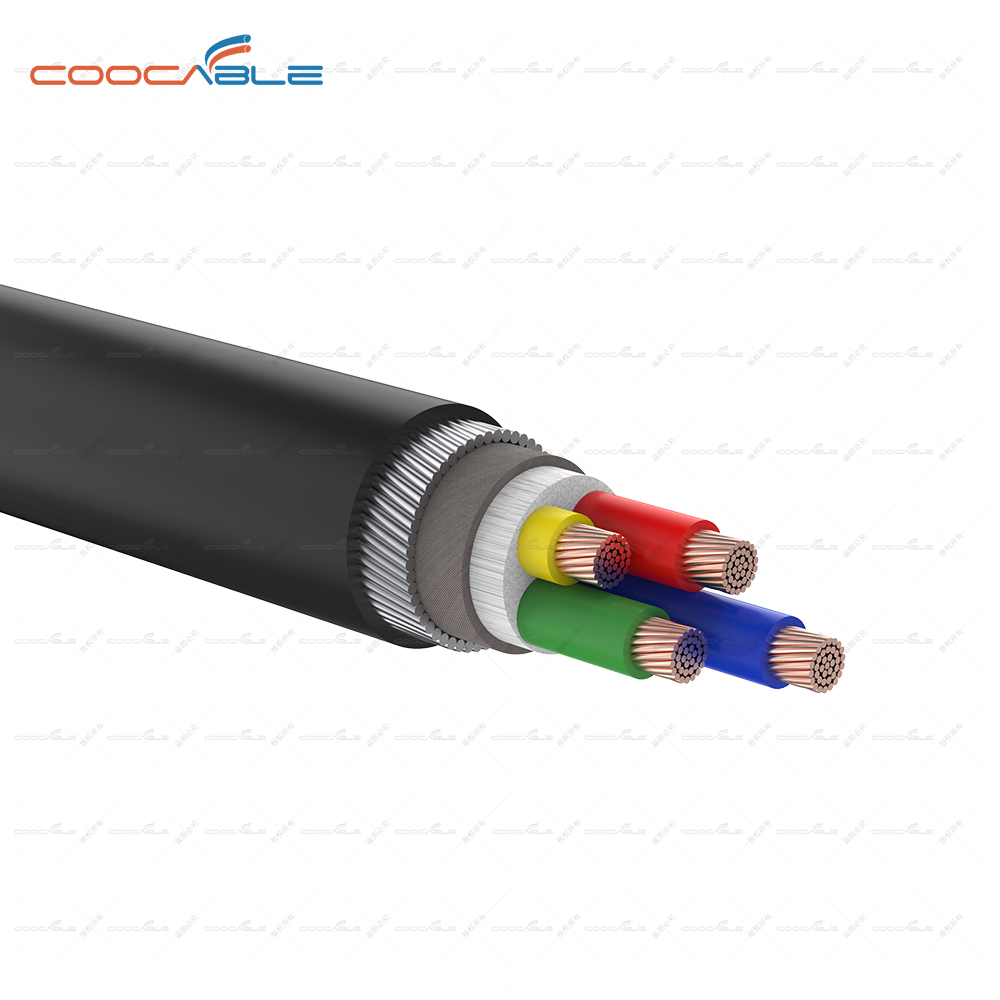

underground Power cable low voltage xlpe insulated 4 core 25mm Power Cable

underground Power cable low voltage xlpe insulated 4 core 25mm Power Cable

: COOCABLE
:
:
Rated Voltage: 0.6/1KV 3.6/6KV 6.5/11KV, 11KV, 33KV, 66KV, 132KV
Max. working temperature: 90 °c Max. temperature during short circuit (≤5S): 250 °c
Conductor: class 1, 2 copper or aluminum
Sectional area: 6 - 630mm2

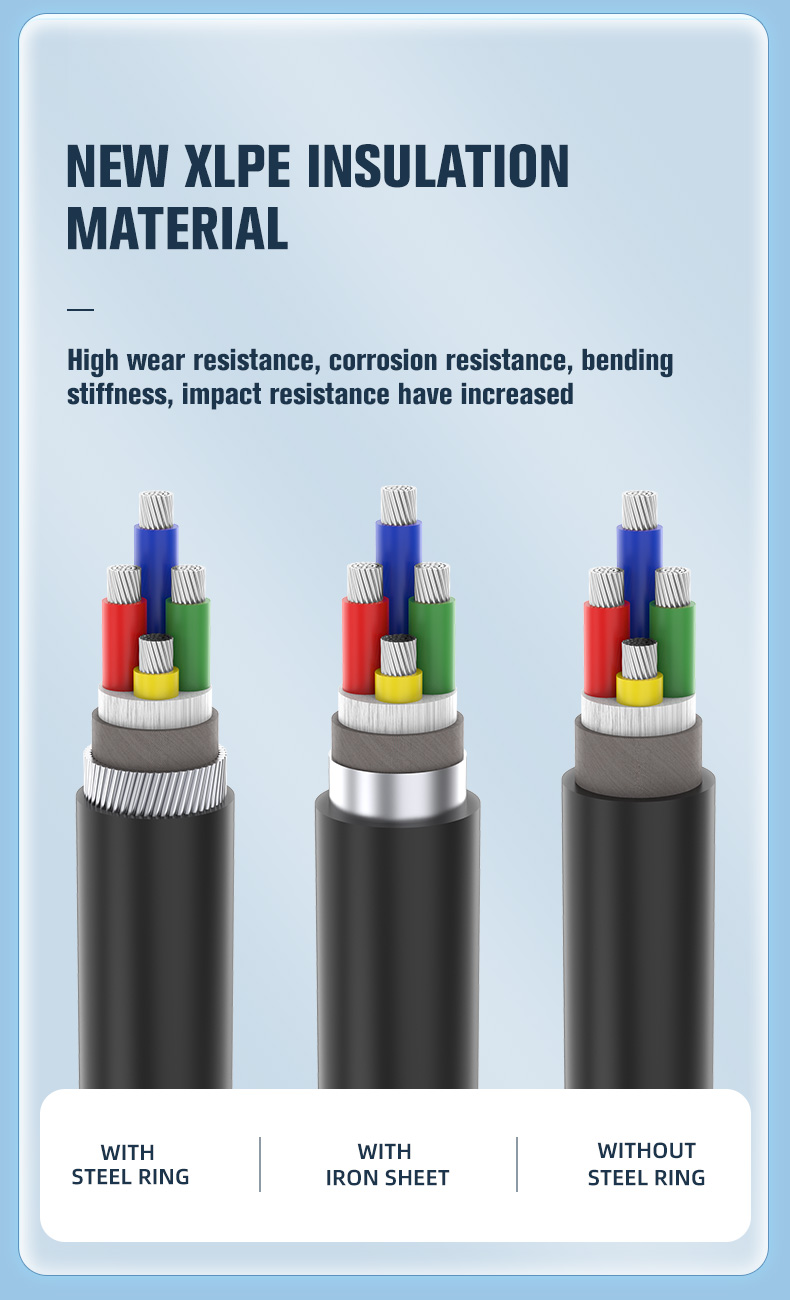

Insulation: XLPE or PVC
No. of cores: 1, 2, 3, 4, 5cores
Armored: steel wire or steel tape for 3 core cables and non-magnetic material for single core
Oversheath: PVC
Min. beding radius: 15 times cable radius for single-core cables and 12 times for multi-core ones
Max. conductor DC resistance at 20°c
: low voltage
