8 awg Solar cable
AWG (American wire gauge) is a standard for distinguishing wire diameter, which is also known as Brown & Sharpe wire gauge. The United States has been using this standardized wire gauge system since 1857. AWG (such as 24AWG, 26AWG) indicates the number of holes that the wire passes through before forming its final diameter. The higher the value, the higher the grade of a cable passing through the hole, and the smaller its diameter.

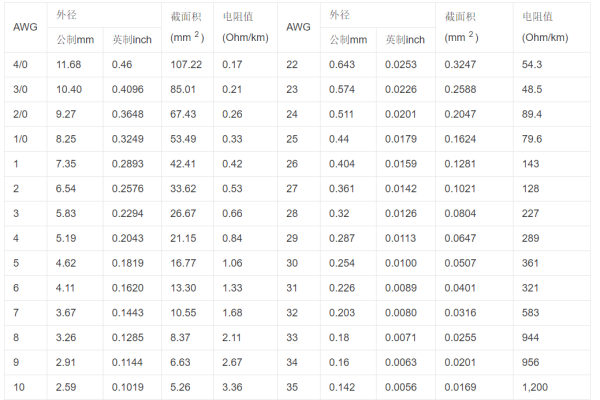

AWG cable control table
Conductors with a larger wire number have a smaller cross-sectional area. A thicker wire has greater physical strength and lower resistance, but it requires more copper to make the cable, which makes it heavier, more difficult to install, and more expensive.
In general, single-wire conductors are sized based on diameter, while stranded conductors are sized based on cross-sectional area. Using the smallest diameter conductors (reducing cost and installation complexity) while maintaining maximum conductor capacity at the required voltage and frequency is the challenge in cable design.
8AWG solar cable for photovoltaic system connecting cable, such as group between string and string to dc power distribution box, junction box) between the parallel cable, pv modules and components of dc side series cable, between groups between string and string of dc power distribution box, junction box) crosslinking between the cable and dc cable distribution box to inverter, It can also be used as an AC application cable between inverter and transmission network.
8AWG solar cable specification
Construction
Conductor:Tinned fine copper strands acc.to VDE
0295/IEC 60228, Class 5.
Insulation:XLPO, flame retardant, halogen free
electron-beam cross-linked. Jacket:XLPO, flame retardant, halogen free, electron-beam cross-linked. Insulation color :black
Jacket color :black or red
Electrical characteristicsRated voltage :DC 1500 V AC Uo/U:1.0/1.0 kV
max.permitted voltage :Uo 1800 V DC
Insulation resistance :1000MΩ/KM Test Voltage(AC):AC 6. 5kV, 50Hz, 5 min
Mechanical feature
Bending radius :4 x outer diameters
Temperature range :-40℃ to +90℃, Max.temp. at conductor +120℃
Short circuit temperature :250℃ for 5 s
Flame-resistant test :acc.to EN 60332-1-2 Anticipated service life:25years
Advantagesl Double insulated Electron-beam cross-linked compounds
l Meter marking - easy installationl UV, ozone and hydrolysis resistant
l Halogen free, flame retardant
l Meter marking - easy installation
l Compatible to all connectors
l Flexible, easy to strip
FAQ
What is solar cable 8awg used for?
solar cable 8awg is uesed for solar, residential, commercial, and industrial lighting and power.
What is size is solar cable 8awg?
The size is from 8awg to 1000 MCM, 1.0sqmm to 240sqmm. Can be directly buried, free air, pipes, underground pipes.
Do you have solar cable 8awg in stocK?
Yes, we have solar cable 4mm in stock. Just tell me your request, I will choose the right cable for you.
