How to choose a solar DC cable manufacturer
How to choose a solar DC cable manufacturer?
What is a solar DC cable
solar cables, also known as solar special cables, are mainly used in photovoltaic power stations. They have the advantages of high temperature resistance, cold resistance, oil resistance, acid and alkali resistance, UV protection, flame retardant and environmental protection, and long service life. They are mainly used in harsh climate conditions; Commonly used models are PV1-F, H1Z2Z2-K. Ordinary cables, also known as PVC or PE insulated wires, are mainly used for electrical installation and home decoration wiring. They have certain weather resistance, mechanical strength and good electrical insulation. High performance (-45°C~+125°C), it is not suitable for outdoor and harsh environmental conditions, and cannot replace photovoltaic wires.
DC solar cables are used for connecting cables of photovoltaic power generation systems, such as parallel cables between strings and between strings and DC distribution boxes (combiner boxes), series cables between PV modules and modules on the DC side, and strings. The cross-linked cable between the DC distribution boxes (combiner boxes) between the strings and the DC distribution box to the inverter, and also the AC application cable used for the connection between the inverter and the transmission network. .
Product parameters and specifications
Construction
Conductor:Tinned fine copper strands acc.to VDE
0295/IEC 60228, Class 5.
Insulation:XLPO, flame retardant, halogen free
electron-beam cross-linked.
Jacket:XLPO, flame retardant, halogen free, electron-beam cross-linked.
Insulation color :black
Jacket color :black or red
Electrical characteristics
Rated voltage :DC 1500 V AC Uo/U:1.0/1.0 kV
max.permitted voltage :Uo 1800 V DC
Insulation resistance :1000MΩ/KM
Test Voltage(AC):AC 6. 5kV, 50Hz, 5 min
Mechanical feature
Bending radius :4 x outer diameters
Temperature range :-40℃ to +90℃, Max.temp. at conductor +120℃
Short circuit temperature :250℃ for 5 s
Flame-resistant test :acc.to EN 60332-1-2
Anticipated service life:35years
specifications of the products
标称截面（mm²） | 导体结构（mm） | 导体直径（mm） | 绝缘厚度（mm） | 护套厚度（mm） | 电缆直径（mm） | 电流电阻为20℃(Ω/km) |
1.5 | 30/0.2 | 1.6 | 1.0 | 0.8 | 5.2 | 12.2 |
2.5 | 50/0.2 | 2.0 | 1.0 | 0.8 | 5.6 | 7.56 |
4 | 56/0.3 | 2.6 | 1.0 | 0.9 | 6.4 | 4.7 |
6 | 84/0.3 | 3.2 | 1.0 | 0.9 | 7 | 3.11 |
10 | 142/0.41 | 4.4 | 1.0 | 0.9 | 8.2 | 1.84 |
16 | 228/0.41 | 5.5 | 1.0 | 1.1 | 9.7 | 1.16 |
25 | 361/0.41 | 6.5 | 1.2 | 1.2 | 11.3 | 0.734 |
35 | 525/0.41 | 7.5 | 1.2 | 1.2 | 12.3 | 0.529 |
Qualifications for a good PV producer
1. It is necessary to provide relevant product certificates such as TUV CE IEC90618, etc.

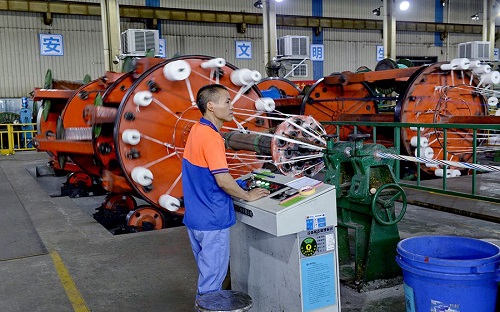

2. There are production sites that meet production needs and have their own factories and technical personnel;
3. There are production equipment to ensure product safety protection performance;
4. There are inspection and testing methods that meet the requirements of product safety protection
performance; there is a perfect quality assurance system;
5. Has an independent R&D laboratory to support product customization
6. There are product standards and related technical documents, and the products meet the requirements of national standards or industry standards, such as TUV CE IEC90618, etc.
7. Can deliver on time and quantity to ensure delivery time
What Coocable can bring you
COOCABLE has a leading cable design and R & D laboratory, focuses on cable R & D and manufacturing, and provides cable customization services for users all over the world. By 2022, it has served more than 100 regions and countries, and its products range from household wires, industrial cables to various types of special cables. We accept the cable customization needs from customers in various regions and provide customer service for your matching exclusive products. We will give priority to your product quotation, sample delivery, receipt and delivery services, etc. With the service tenet of reply in 10 minutes, quotation on the same day and delivery in the fastest seven days, COOCABLE can easily build a global cable trade chain for you.
Buy cable and choose COOCABLE, the cable customization expert around you.
