ROV underwater zero-buoyancy cable
ROV underwater zero-buoyancy cable
ROV underwater zero buoyancy cable application scope:
ROV underwater zero buoyancy cables are widely used in complex environments such as rivers, lakes and oceans, as well as various wetlands and wet areas due to their good seawater corrosion resistance and special underwater buoyancy characteristics, including shallow water areas and deep water environments. , Different water environments and different water depths have different requirements for cables. The deeper the depth, the higher the requirements for cables. ROV underwater zero buoyancy cable form: ROV underwater zero buoyancy cable composite structure is generally composed of power supply and twisted pair shielded control signal line. The commonly used logarithms are 2 pairs, 3 pairs, 4 pairs, 5 pairs, etc. In addition, the design and structure of different cables will be different according to different water depths and tensile requirements, and the specific ones can be customized according to user requirements.
ROV underwater zero buoyancy cable features:
Underwater ROV cable is waterproof, oil-proof, cold-resistant, anti-corrosion, anti-ultraviolet, wear-resistant, flame-retardant, anti-bending, anti-bending, anti-seawater corrosion, anti-seawater pressure, anti-tensile, anti-aging, anti-ultraviolet, suitable for water for mobile installation. ROV underwater zero buoyancy cable Structure: Conductor: Multi-strand ultra-fine finely twisted oxygen-free copper wire, in line with VDE0295CLASS standard Insulation: special nitrile PVC mixed or TPE (customer optional) Color: ≤0.5mm

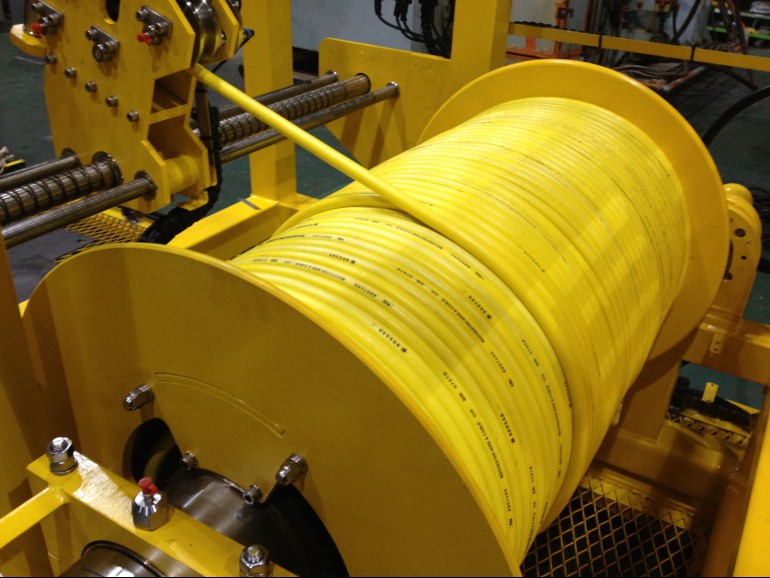

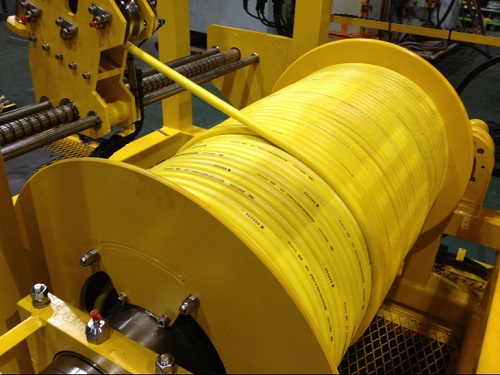

product description:Underwater ROV flotation cables are designed for remote submersibles and other subsea applications
A high-performance tether that is lightweight, strong and optimized for transportation.
It has neutral buoyancy with a breaking strength of 1550N,
And water-blocking fibers are embedded to seal any leaks.
The cable is 6.8mm in diameter, which is much thinner than most ROV cables.
Unshielded twisted pair (UTP) of 26 AWG (0.14mm2) wire.
The core of the cable contains Kevlar wire for strength and polyester wire for space filling.
