Do you know anything about tuv 10mm2 solar cable

Do you know anything about tuv 10mm2 solar cable

What is a Tuv Certification?

The TuV  is a safety certification logo of the German TuV specially customized for component products, which is widely accepted in Germany and Europe. Have clear quality regulations for electrical equipment

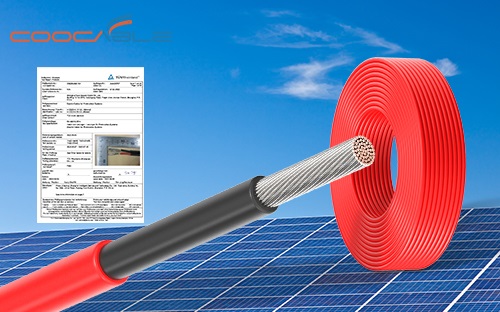

The Characteristics of Solar Cable 10mm

Construction

Conductor:Tinned fine copper strands acc.to VDE

0295/IEC 60228, Class 5.

Insulation:XLPO, flame retardant, halogen free

electron-beam cross-linked.

Jacket:XLPO, flame retardant, halogen free, electron-beam cross-linked.

Insulation color :black

Jacket color :black or red

Electrical characteristics

Rated voltage :DC 1500 V AC Uo/U:1.0/1.0 kV

max.permitted voltage :Uo 1800 V DC

Insulation resistance :1000MΩ/KM

Test Voltage(AC):AC 6. 5kV, 50Hz, 5 min

Mechanical feature

Bending radius :4 x outer diameters

Temperature range :-40℃ to +90℃, Max.temp. at conductor +120℃

Short circuit temperature :250℃ for 5 s

Flame-resistant test :acc.to EN 60332-1-2

Anticipated service life:35years

Solar Cable Advantage:

Solar cable 10mm2 excellent ozone resistance, ultraviolet resistance, humid heat resistance, acid and alkali resistance, dent resistance. Halogen-free flame retardant, the service life is not less than 30 years International TUV double certification, effective quality assurance
